1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog

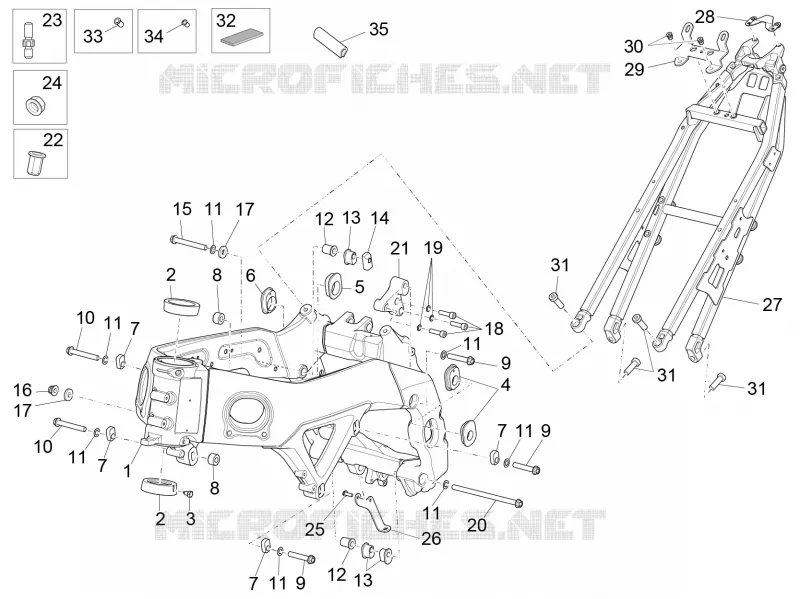

FRAME
6
Parts Diagram
Parts Catalog
CYLINDER - PISTON
by
SHOCK ABSORBER
FRAME
1
2
2
3
4
5
6
7
7
7
7
8
8
9
9
9
10
10
11
11
11
11
11
11
11
12
12
13
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
33
34
35
1
Châssis, anodisé
2B0056525
Not Available
2
Steering bushing
2B005850
£111,28 Unit Price incl. VAT
3
Dowel
858729
£29,83 Unit Price incl. VAT
4
LH -5 Swingarm insert
2B001451
£16,94 Unit Price incl. VAT
5
RH -5 int. Swingarm insert
2B001453
£17,80 Unit Price incl. VAT
6
External swingarm insert RH -5
2B001452
£16,68 Unit Price incl. VAT
7
Front Insert pos. +5
858717
Not Available
8
RH spacer
858718
£18,06 Unit Price incl. VAT
9
Screw w/ flange M10x55
AP8152410
£13,28 Unit Price incl. VAT
10
Screw w/ flange
AP8152481
£6,29 Unit Price incl. VAT
11
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
12
Bush
858710
£25,40 Unit Price incl. VAT
13
Rear Insert pos. +5
858714
£59,12 Unit Price incl. VAT
14
Rear Insert pos. -5
2B001454
£17,10 Unit Price incl. VAT
15
Screw w/ flange M10x80
AP8152398
£13,28 Unit Price incl. VAT
16
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
17
Washer 10,5x25x4
AP8152441
£1,64 Unit Price incl. VAT
18
Hex socket screw M8x30
AP8150107
£1,94 Unit Price incl. VAT
19
Washer 8,4x13*
AP8152154
£1,88 Unit Price incl. VAT
20
Pin
858712
£126,90 Unit Price incl. VAT
21
Rear engine support
2B001354
£49,80 Unit Price incl. VAT
22
Hex threaded insert
AP8102902
£1,88 Unit Price incl. VAT
23
Pin
894027
Not Available
24
Flanged nut
AP8150506
£1,27 Unit Price incl. VAT
25
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
26
Fixing bracket
2B001525
£46,28 Unit Price incl. VAT
27
Saddle support
2B003589
£1 208,45 Unit Price incl. VAT
28
Headlight support clamp
858903
£23,00 Unit Price incl. VAT
29
Support bracket
858904
£26,44 Unit Price incl. VAT
30
Threaded rivet
AP8201755
£6,38 Unit Price incl. VAT
31
Hex socket screw M10x30
AP8150469
£5,41 Unit Price incl. VAT
32
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
33
Threaded rivet M6
AP8102544
£3,68 Unit Price incl. VAT
34
Threaded rivet
AP8104390
£4,46 Unit Price incl. VAT
35
Gasket
AP8144707
£10,22 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
