Engine displacement
300
2
Model
LEONARDO
3
Year
2004
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Valve control
6
Parts Diagram
Parts Catalog
Valves
by
Engine head
Valve control
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
1
Camshaft cpl.
AP8552073
Not Available
1
Camshaft cpl.
AP8555002
Not Available
2
O-ring
AP8552074
Not Available
3
screw
AP8552075
Not Available
4
plate
AP8552076
Not Available
5
screw
AP8552077
Not Available
6
Nut lock
AP8552078
Not Available
7
Gear
AP8552079
Not Available
8
Pump body roller D4x10
AP8206338
Not Available
9
screw
AP8552080
Not Available
10
Washer
AP8552081
Not Available
11
Cup
AP8552082
Not Available
12
Camshaft chain
AP8552083
Not Available
13
Low.timing system chain guide
AP8552084
Not Available
14
Timing system chain tens.cpl.
AP8552085
Not Available
15
screw
AP8552028
Not Available
16
Chain tensioner gasket
AP8552087
Not Available
17
Up.timing system chain guide
AP8552088
Not Available

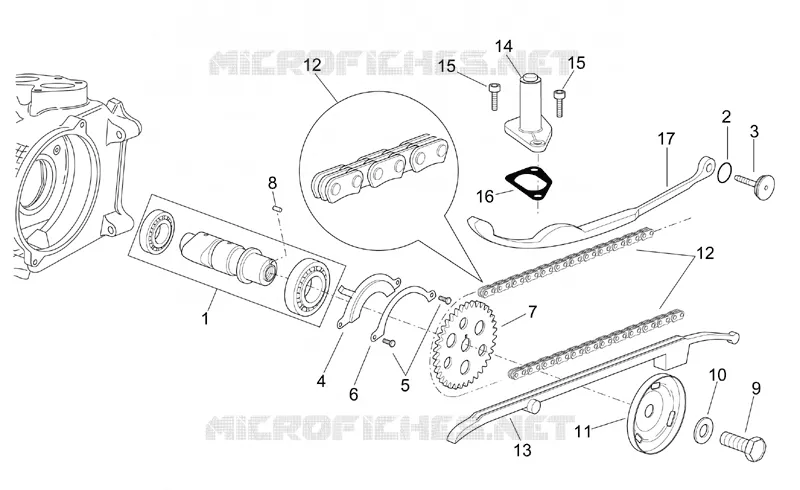

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
