1
Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5

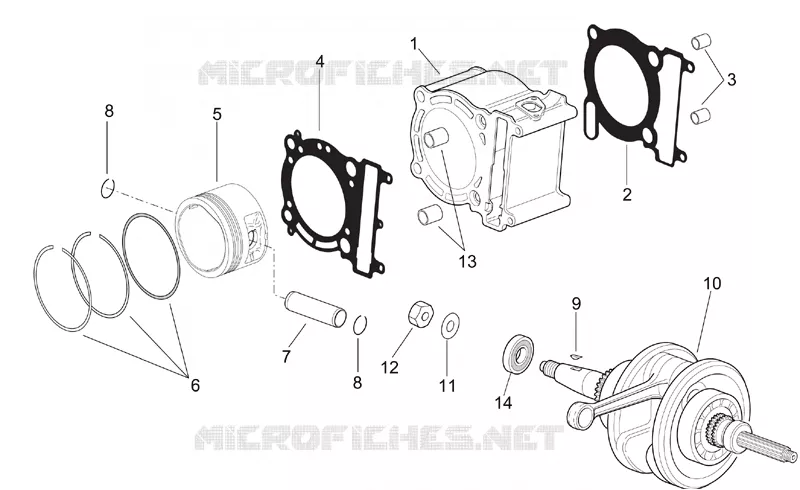

Parts Catalog
Drive shaft - Cylinder - Piston
6
Parts Diagram
Parts Catalog
Flywheel side cover
by
Valves
Drive shaft - Cylinder - Piston
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
1
Cylinder
AP8552046
Not Available
1
Cylinder
AP8555003
Not Available
2
Cylinder base gasket
AP8552047
Not Available
3
Pin D.10x14-INT.D.8,5
AP8502807
Not Available
4
Cylinder head gasket
AP8552048
Not Available
4
Cylinder head gasket
AP8555005
Not Available
5
Piston D.70
AP8552050
Not Available
5
Piston D.71
AP8555006
Not Available
5
Piston D.69,5
AP8552049
Not Available
6
Piston ring set D.71
AP8555009
£382,94 Unit Price incl. VAT
6
Piston ring set D.69,5
AP8552051
Not Available
6
Piston ring set D.70
AP8552052
Not Available
7
Piston pin
AP8552053
Not Available
8
Circlip w. bent end
AP8552054
Not Available
9
Transmission key
AP8552055
Not Available
10
Crankshaft cpl.
AP8552056
Not Available
10
Crankshaft cpl.
AP8555004
Not Available
11
Washer
AP8552057
Not Available
12
Nut
AP8552058
Not Available
13
Pin
AP8552059
Not Available
14
Bearing
AP8106987
Not Available
