1
Engine displacement
250
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog
Front fork I
6
Parts Diagram
Parts Catalog
Central stand
by
Front fork II

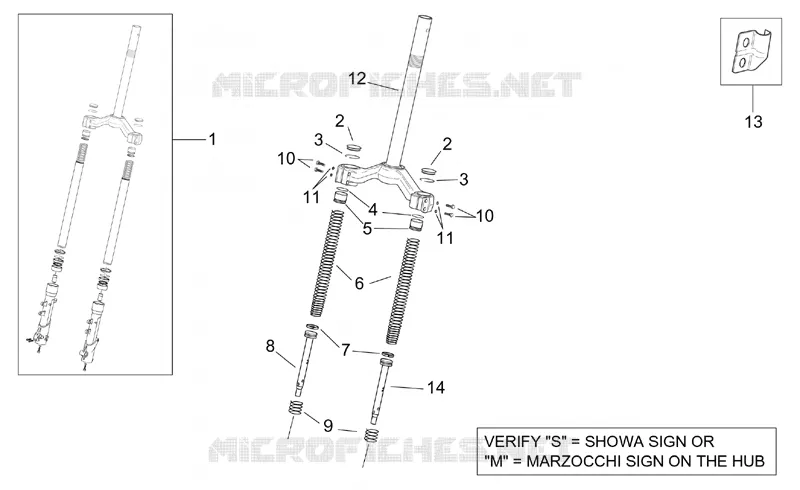

Front fork I
1
2
2
3
3
4
5
6
7
8
9
10
10
11
11
12
13
14
1
Front fork
AP8123798
Not Available
2
Plug
AP8123759
£5,94 Unit Price incl. VAT
2
Plug
AP8123696
Not Available
3
Circlip
AP8203950
£2,53 Unit Price incl. VAT
3
Stop ring
AP8123756
£1,16 Unit Price incl. VAT
4
O-ring
AP8123695
£7,28 Unit Price incl. VAT
4
O-ring
AP8123775
Not Available
5
Cover
AP8123761
Not Available
5
Plug cpl.
AP8123698
Not Available
6
Spring
AP8123762
Not Available
6
Spring
AP8163026
Not Available
7
Ring
AP8123776
£38,23 Unit Price incl. VAT
7
Ring
AP8123754
£13,78 Unit Price incl. VAT
8
Shock absorber
AP8163027
Not Available
8
Shock absorber
AP8123763
Not Available
9
Spring
AP8123764
£7,55 Unit Price incl. VAT
9
Return spring
AP8123708
£14,57 Unit Price incl. VAT
10
Screw w/ flange
AP8163002
£3,76 Unit Price incl. VAT
10
screw M8x30
AP8123757
Not Available
11
Washer
AP8123924
Not Available
11
Disc cover bush
AP8163010
Not Available
12
Stem base
AP8123931
Not Available
12
Stem base
AP8163028
Not Available
13
Cable-guide
AP8121339
Not Available
14
Shock absorber
AP8123763
Not Available
14
Shock absorber
AP8163029
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
