Engine displacement
750
2
Model
DORSODURO
3
Year
2009
4
Trim
Dorsoduro ABS
5
Parts Catalog
Cylinder with piston
6

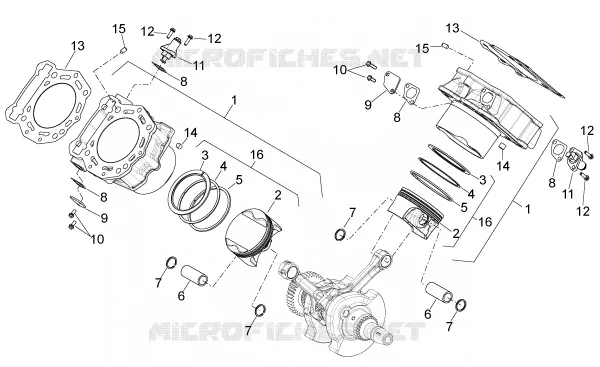

Parts Diagram
Parts Catalog
Rear cylinder timing system
by
Water pump II
Cylinder with piston
16
16
15
15
14
14
13
13
12
12
12
12
11
11
10
10
9
9
8
8
8
8
7
7
7
7
6
6
5
5
4
4
3
3
2
2
1
1
1
Cylinder - Piston
848796
Not Available
1
Cylinder - Piston
B013758
£725,60 Unit Price incl. VAT
1
Cylinder - Piston
B017519
£240,06 Unit Price incl. VAT
2
Piston catC 91,947-91,954
8482860003
£173,18 Unit Price incl. VAT
2
Piston catD 91,954-91,961
8482860004
£173,18 Unit Price incl. VAT
2
Piston catA 91,933-91,940
8482860001
£173,18 Unit Price incl. VAT
2
Piston catB 91,940-91,947
8482860002
£173,18 Unit Price incl. VAT
3
Ring
872655
£45,26 Unit Price incl. VAT
4
Oil scraper ring
872656
Not Available
5
Oil scraper ring
872657
£30,68 Unit Price incl. VAT
6
Piston pin
848798
£30,54 Unit Price incl. VAT
7
Stop ring
828116
£1,00 Unit Price incl. VAT
8
Guarnizione cilindro/tendicatena
847928
£3,24 Unit Price incl. VAT
9
Plate
840135
£4,14 Unit Price incl. VAT
10
Screw w/ flange
872425
£1,21 Unit Price incl. VAT
11
Complete chain tensioner
82650R
£25,94 Unit Price incl. VAT
12
Screw w/ flange
872432
£1,27 Unit Price incl. VAT
13
Cylinder head gasket
871776
Not Available
14
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
15
Calibrated dowel
874589
Not Available
16
Piston assy "D"
B0176490004
£274,14 Unit Price incl. VAT
16
Piston assy "B"
B0176490002
£274,14 Unit Price incl. VAT
16
Piston assy "A"
B0176490001
£158,87 Unit Price incl. VAT
16
Piston assy "C"
B0176490003
£278,52 Unit Price incl. VAT
