1
Engine displacement
50
2
Model
AREA-51
3
Year
2000
4
Trim
Area 51
5
Parts Catalog
Central body III
6
Parts Diagram
Parts Catalog
Central body II
by
Saddle - Helmet compartment

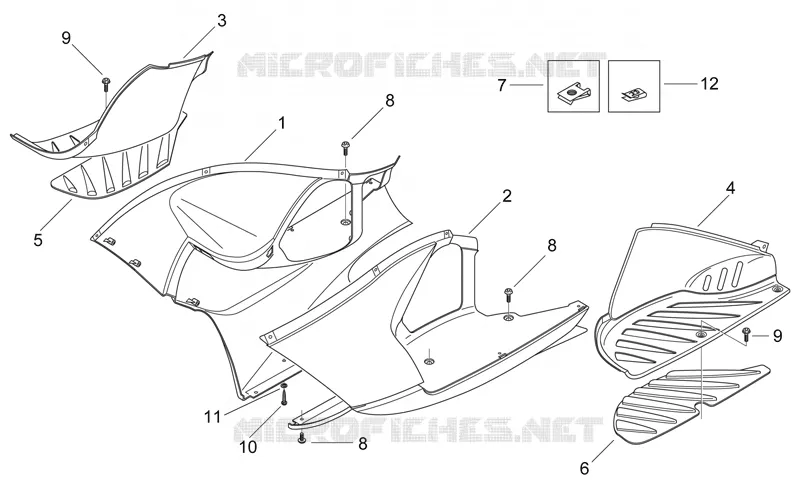

Central body III
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
1
RH red floor panel, a.black
AP8249373
Not Available
1
RH Floor panel, flashy yellow
AP8249694
Not Available
1
RH Floor panel, cyber cyan
AP8248206
Not Available
1
RH Floor panel, cyber grey
AP8248210
Not Available
1
RH Floor panel, mercury grey
AP8249682
Not Available
2
LH red floor panel, a.black
AP8249374
Not Available
2
LH Floor panel, cyber cyan
AP8248207
Not Available
2
LH Floor panel, mercury grey
AP8249683
Not Available
2
LH Floor panel, cyber grey
AP8248211
£393,55 Unit Price incl. VAT
2
LH Floor panel, flashy yellow
AP8249695
Not Available
3
RH tunnel lockup, cyan
AP8239162
Not Available
3
RH tunnel lockup, black
AP8249358
Not Available
4
LH tunnel lockup, black
AP8249359
Not Available
4
LH tunnel lockup, cyan
AP8239163
Not Available
5
RH mat, silver
AP8239166
Not Available
6
LH mat, silver
AP8239167
£35,77 Unit Price incl. VAT
7
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
8
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
9
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
10
Screw 5,5x22*
AP8150425
£1,88 Unit Price incl. VAT
11
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
12
Screw clip D5,5*
AP8201763
£1,85 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
