Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel - drum brake
by
Lights
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
DAX flange nut M14x1,5
AP8152244
£3,62 Unit Price incl. VAT
2
Tyre
0000000
Not Available
3
Tyre
0000000
Not Available
4
Spring washer 14,5x24
AP8150471
£4,14 Unit Price incl. VAT
5
Rear wheel
AP8208387
Not Available
6
Brake shoes+springs
AP8213133
Not Available
7
Brake cable retainer
AP8221120
£35,82 Unit Price incl. VAT
8
Rear brake cam
AP8213251
Not Available
9
Rear brake lever, zinc finish
AP8232678
£42,23 Unit Price incl. VAT
10
Rear brake cable
AP8214104
Not Available
11
Rear brake lever register
AP8101103
£5,94 Unit Price incl. VAT
12
Coil compress. spring
AP8213137
£2,59 Unit Price incl. VAT
13
O-ring 114
AP8120769
£0,96 Unit Price incl. VAT
14
HEXAGON COCKET SCREWS M6X35
AP8152136
£1,27 Unit Price incl. VAT
15
SELF-LOCKING NUT M6
AP8152299
£1,88 Unit Price incl. VAT

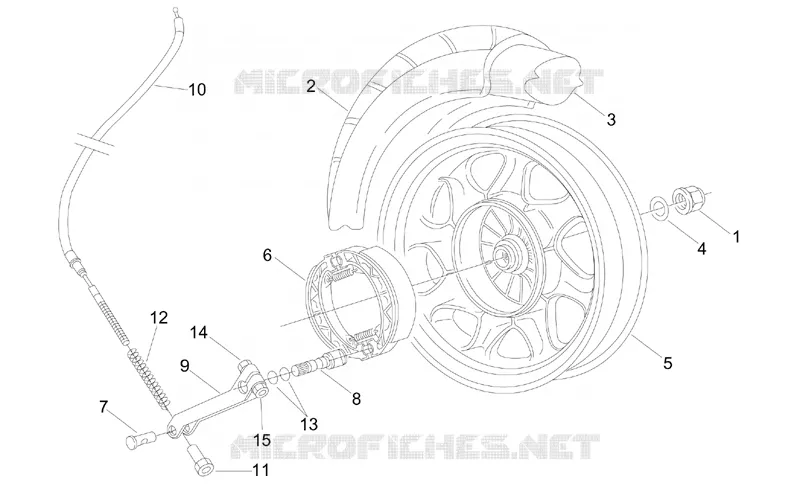

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
