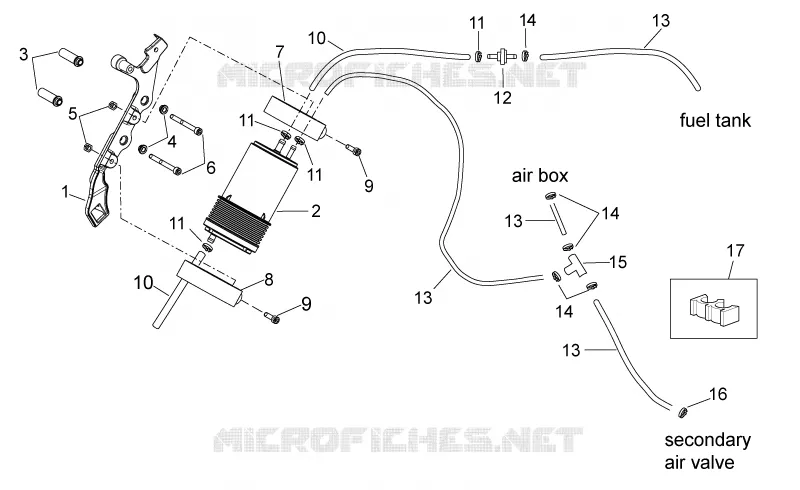

Fuel vapour recover system
1
2
3
4
5
6
7
8
9
9
10
10
11
11
11
11
12
13
13
13
13
14
14
14
15
16
17
1
Maintenance
855029
£16,12 Unit Price incl. VAT
2
Carbon filter
AP8102678
£41,63 Unit Price incl. VAT
3
Bush
855082
£10,03 Unit Price incl. VAT
4
Bush
AP8221129
£2,51 Unit Price incl. VAT
5
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
6
Screw w/ flange M6x70
AP9100638
Not Available
7
Hose clamp d.76
AP8102688
£65,77 Unit Price incl. VAT
8
Hose clamp d.80,5
AP8102719
£84,05 Unit Price incl. VAT
9
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
10
pipe SAE 30 d.12,7x6,35
856063
£63,43 Unit Price incl. VAT
11
White hose clip d.13x6
AP8102764
£3,25 Unit Price incl. VAT
12
Valve "roll over"
856161
£50,80 Unit Price incl. VAT
13
pipe SAE 30 d.11,11x4,8
856062
Not Available
14
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
15
3-way union
AP8104666
£16,02 Unit Price incl. VAT
16
Hose clamp
CM002904
£0,54 Unit Price incl. VAT
17
Cable-guide D8
AP8201808
£3,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
