by
Frame
1
2
3
3
3
3
3
4
4
5
5
6
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
Frame
86100701WGA
Not Available
1
Frame
863476
Not Available
1
Frame
865438
Not Available
2
Washer
00036008000
Not Available
3
Washer D8
00402080001
Not Available
4
screw M125x40
00022084021
Not Available
5
Nut M8x125
00023108000
Not Available
6
LH FOOTREST
00H02201312
£19,73 Unit Price incl. VAT
7
screw 8M125X45
00022084521
Not Available
8
Nut 8M125
00262080022
Not Available
9
Central stand
86250600WGB
Not Available
9
Central stand
86250700WGB
Not Available
9
Central stand
86250601WGB
Not Available
9
Central stand
86250701WGB
£80,47 Unit Price incl. VAT
10
Stand spring protection
AP8102524
£25,45 Unit Price incl. VAT
11
Washer
00008902630
Not Available
12
SIDE STAND LEG SECURING SCREW
00H00805072
£11,44 Unit Price incl. VAT
13
Nut M8x125
00023108000
Not Available
14
Bearing
00000056205
Not Available
15
CHAIN SUPPORTY GUIDE
00H01801771
£14,74 Unit Price incl. VAT
16
STEERING BEARING SEPARATOR TUB
00H06303401
£28,06 Unit Price incl. VAT
17
Bushing
00002518790
Not Available
18
BOLT, CRANKCASE 8MM1.25X90.
00H02500272
£2,12 Unit Price incl. VAT
19
STEERING TUBE BEARING WASHER G
00H06500451
£4,52 Unit Price incl. VAT
20
RIGHT FOOT REST
00D01520096
£9,23 Unit Price incl. VAT
21
LEFT FOOT REST
00D01540456
£9,40 Unit Price incl. VAT
22
PILLION FOOTREST SECURING
00H04903292
£1,09 Unit Price incl. VAT
23
Washer
00402100001
Not Available
24
RH FOOTREST
00H02201302
£19,73 Unit Price incl. VAT
25
Bushing
00002215152
Not Available
26
SCREW
00H03000272
£3,43 Unit Price incl. VAT
27
Nut 10M150
00262100032
Not Available
28
Plate
00H00800422
Not Available
29
RIGHT FOOT REST PROTECTOR
00H01502101
£9,25 Unit Price incl. VAT
30
LEFT FOOT REST PROTECTOR
00H01501501
£9,25 Unit Price incl. VAT
31
RIGHT FOOT REST PROTECTOR
00H01503101
£3,88 Unit Price incl. VAT
32
LEFT FOOT REST PROTECTOR
00H01502501
£3,91 Unit Price incl. VAT
33
DUST COVER, STEM
00D00200761
£7,10 Unit Price incl. VAT
34
Washer
00003306570
Not Available
35
Outer spring
863001
Not Available
36
Inner spring
863002
Not Available

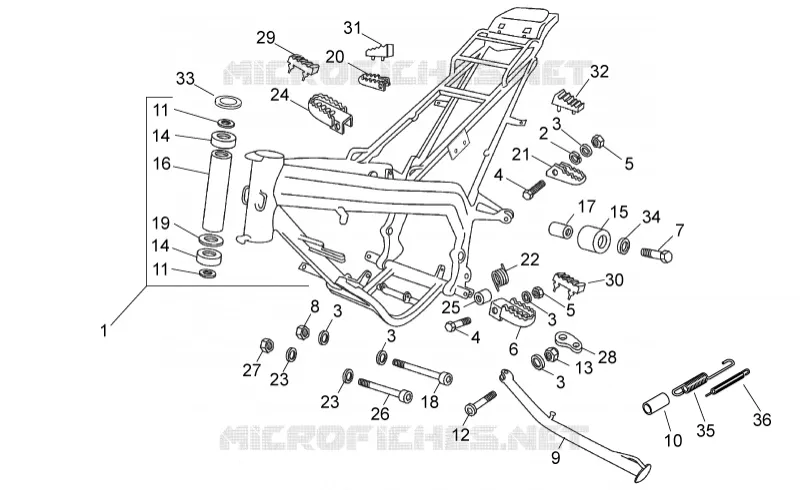

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
