Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Frame I
by
Fuel tank
Rear wheel
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
14
14
15
15
16
17
18
19
20
21
21
22
23
24
25
26
27
27
1
Rear tyre 190/55 ZR 17"
B043457
Not Available
2
Rear wheel, black 6.00X17
898255
£535,02 Unit Price incl. VAT
3
Chain cpl conn.link
896358
£161,87 Unit Price incl. VAT
4
Chain ring Z=42
CM224903
£134,05 Unit Price incl. VAT
5
Pin
B045033
£13,34 Unit Price incl. VAT
6
Flexible coupling rubber
AP8125731
Not Available
7
Rear wheel spindle
858731
Not Available
8
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
9
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT
10
Crown holder cpl.
AP8125730
Not Available
11
Gasket ring 38x55x7
AP8121213
£13,72 Unit Price incl. VAT
12
Spring drive spacer
AP8125732
£86,94 Unit Price incl. VAT
13
Inside circlip d55
AP8121212
£2,80 Unit Price incl. VAT
14
Bearing 30x55x13
AP8110081
£25,36 Unit Price incl. VAT
15
Bearing 6205-2rs1 25x52x15
AP8110093
£69,65 Unit Price incl. VAT
16
Internal spacer
AP8128170
£39,96 Unit Price incl. VAT
17
Gasket ring 38x52x7
AP8125838
£2,71 Unit Price incl. VAT
18
Connecting link
859754
£15,17 Unit Price incl. VAT
19
Snap ring d52
AP8125839
£5,14 Unit Price incl. VAT
20
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
21
Rear wheel spacer
AP8121592
£53,63 Unit Price incl. VAT
22
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
23
Rear wheel spring drive holder
AP8128231
Not Available
24
Hex socket screw M10x30
AP8150195
£1,88 Unit Price incl. VAT
25
Phonic wheel ABS
890960
£37,02 Unit Price incl. VAT
26
Pin 10x20
AP8150463
£2,80 Unit Price incl. VAT
27
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT

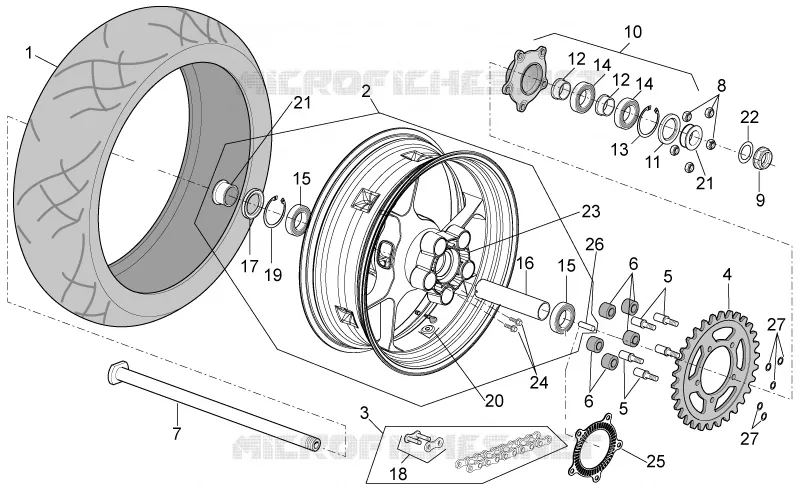

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
