1
Engine displacement
1000
2
Model
TUONO
3
Year
2014
4
Trim
Tuono V4 R APRC ABS
5
Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Cylinder - Piston
Rear body I
1
1
2
2
3
3
4
4
5
5
5
6
6
7
7
8
8
8
8
8
9
9
9
10
10
10
10
11
11
11
11
11
12
13
14
15
16
16
17
18
19
1
Screw M6x40
AP8150468
£1,27 Unit Price incl. VAT
2
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
3
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Bush 10x7
AP9100594
£3,49 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
7
Washer 12,5x6,4*
AP8150380
£0,14 Unit Price incl. VAT
8
female screw insert
B043254
£7,62 Unit Price incl. VAT
9
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
10
Self-tapping screw *
AP8150420
£1,88 Unit Price incl. VAT
11
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
12
RH rear fairing, black
89887400NI
Not Available
13
LH rear fairing, black
89887500NI
£190,55 Unit Price incl. VAT
14
RH side panel
858833
£64,46 Unit Price incl. VAT
15
LH side panel
858834
£64,46 Unit Price incl. VAT
16
Adhesive sponge 15x8
AP8117004
Not Available
17
Hex key
894195
£2,12 Unit Price incl. VAT
18
Rear handle
8988800XH5
Not Available
19
"Aprilia" dataplate
AP8157770
£15,53 Unit Price incl. VAT

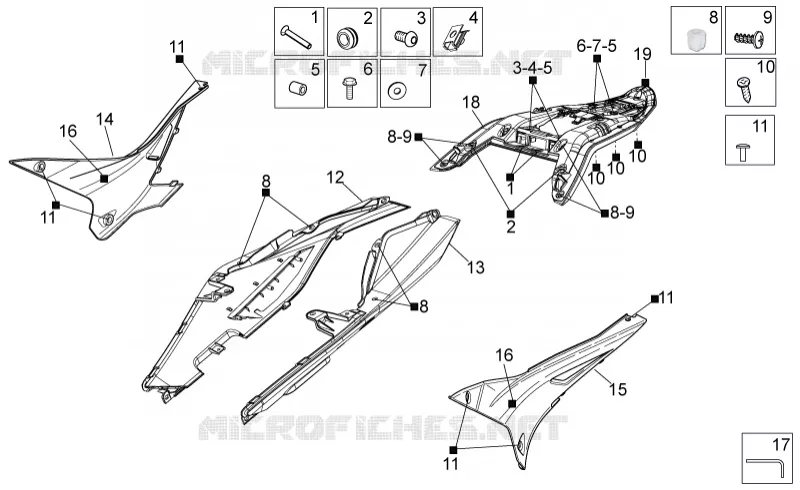

Find the detailed Rear body I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
