Engine displacement
1000
2
Model
TUONO
3
Year
2014
4
Trim
Tuono V4 R APRC ABS
5
Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Front fork
by
Front master cilinder
Front body I
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
12
12
13
13
13
13
14
14
15
15
15
16
17
17
18
18
19
20
21
22
22
23
23
1
RH Upper Air duct
899134
Not Available
2
LH Upper Air duct
899135
£15,50 Unit Price incl. VAT
3
Rubber w/ insert M4
AP8144564
£2,52 Unit Price incl. VAT
4
Hex socket screw
581957
£0,30 Unit Price incl. VAT
5
Plastic washer
895916
£2,48 Unit Price incl. VAT
6
RH Lower Air duct
899136
Not Available
7
Front fairing, black
B04583100NI
Not Available
7
Front fairing, black
2H000184000NI
Not Available
8
Decal "Italia"
B043213
£11,29 Unit Price incl. VAT
9
RH Front fairing decal
B045785
£14,66 Unit Price incl. VAT
10
LH Front fairing decal "APRC TUONO V4"
2H000187
£13,32 Unit Price incl. VAT
10
LH Front fairing decal "APRC TUONO V4"
B045786
Not Available
11
Windshield
899133
Not Available
11
Windshield
899651
£80,93 Unit Price incl. VAT
12
Threaded pin
899919
£9,66 Unit Price incl. VAT
13
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
14
T bush
AP8221023
£1,64 Unit Price incl. VAT
15
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
16
Vite TBEI M6x25
AP8152117
£2,63 Unit Price incl. VAT
17
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
18
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
19
LH Lower Air duct
899137
Not Available
20
RH front/LH rear turn indic.
AP8127804
£32,52 Unit Price incl. VAT
21
LH front/RH rear turn indic.
AP8127803
£32,52 Unit Price incl. VAT
22
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
23
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT

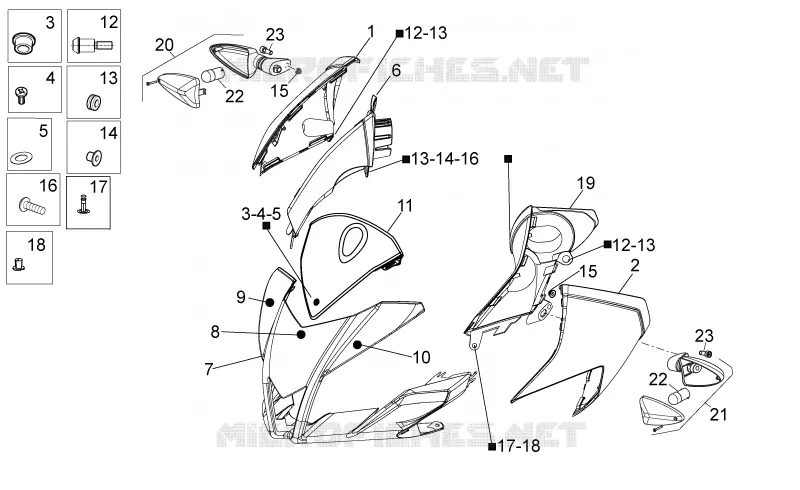

Find the detailed Front body I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
