Engine displacement
1000
2
Model
TUONO
3
Year
2014
4
Trim
Tuono V4 R APRC ABS
5
Parts Catalog
Front body II
6
Parts Diagram
Parts Catalog
Rear body II
by
Front brake caliper
Front body II
1
1
1
1
1
2
2
2
2
2
3
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
9
9
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
1
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
2
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
3
Rubber spacer
AP8220186
£2,48 Unit Price incl. VAT
4
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
5
Front dust cover ring
AP8120622
£1,36 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
6
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
7
Hex socket screw
895915
£2,48 Unit Price incl. VAT
8
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
9
Fixing bracket
899856
Not Available
9
Lower bracket
2B002563
£13,30 Unit Price incl. VAT
10
Upper Frame SX
899605
£17,15 Unit Price incl. VAT
11
Upper Frame DX
899138
£16,94 Unit Price incl. VAT
12
LH side fairing, white
B04583300XB9
Not Available
12
LH lat.fairing, black
2H000186000NI
Not Available
13
RH side fairing, white
B04583200XB9
Not Available
13
RH lat.fairing, black
2H000185000NI
£147,90 Unit Price incl. VAT
14
Left pillar
B043247
£24,73 Unit Price incl. VAT
15
Right pillar
B043246
£24,73 Unit Price incl. VAT
16
Left-right side fairing decal "TUONO V4"
2H000188
£12,76 Unit Price incl. VAT
16
Left-right side fairing decal "TUONO V4"
B045787
Not Available
17
Spacer
890964
£23,84 Unit Price incl. VAT
18
Cable-guide
AP8120428
£26,03 Unit Price incl. VAT
19
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
20
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
21
Spacer
AP8125848
£3,83 Unit Price incl. VAT
22
Spacer
AP8120253
£1,66 Unit Price incl. VAT
23
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
24
Vite TBEI M6x25
AP8152117
£2,63 Unit Price incl. VAT

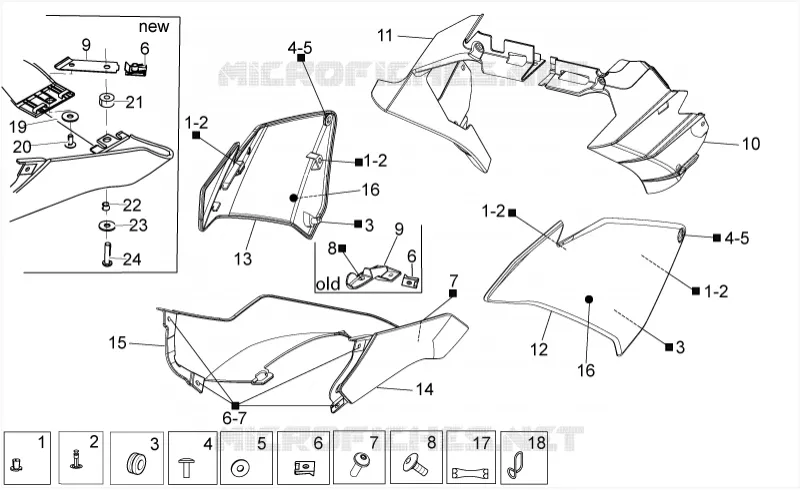

Find the detailed Front body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
