Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Throttle body
by
Crank-case I
Fuel vapour recover system
1
2
3
4
5
6
6
7
8
8
9
9
10
11
12
13
14
15
15
15
15
16
17
17
18
19
20
21
22
23
24
24
25
26
26
1
Carbon filter
AP8102678
£41,63 Unit Price incl. VAT
2
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
3
Fuel pipe 8x13
890499
£14,63 Unit Price incl. VAT
4
pipe SAE 30 d.12,7x6,35
856063
£63,43 Unit Price incl. VAT
5
Cable-guide
AP8221150
£2,48 Unit Price incl. VAT
6
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
7
Valve
860138
£49,48 Unit Price incl. VAT
8
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
9
Choke hold
AP8121267
£29,15 Unit Price incl. VAT
10
Hose clamp d.9,5
AP8102998
£2,93 Unit Price incl. VAT
11
pipe SAE 30 d.11,11x4,8
856062
Not Available
12
White hose clip d.13x6
AP8102764
£3,25 Unit Price incl. VAT
13
Fairlead d18
AP8221311
£0,52 Unit Price incl. VAT
14
pipe SAE 30 L.50
CM178413
£8,68 Unit Price incl. VAT
15
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
16
pipe SAE 30 L.130
CM178411
£8,68 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
18
Tee union
828325
£10,48 Unit Price incl. VAT
19
pipe SAE L.90
CM178412
£8,68 Unit Price incl. VAT
20
Hose clamp d.76
AP8102688
£65,77 Unit Price incl. VAT
21
Hose clamp d.80,5
AP8102719
£84,05 Unit Price incl. VAT
22
Carbon filter support
899788
£46,46 Unit Price incl. VAT
23
Special washer
AP8150536
£24,73 Unit Price incl. VAT
24
Curved spring washer 6x12
658830
£0,95 Unit Price incl. VAT
25
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
26
Screw w/ flange
871094
£1,27 Unit Price incl. VAT

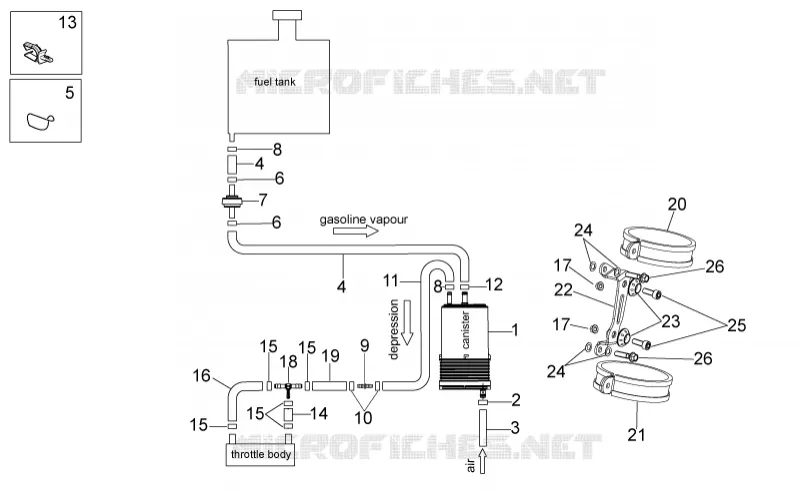

Find the detailed Fuel vapour recover system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
