Engine displacement
1000
2
Model
TUONO
3
Year
2014
4
Trim
Tuono V4 R APRC ABS
5
Parts Catalog
Rear body II
6
Parts Diagram
Parts Catalog
Cylinder - Piston
by
Front body II
Rear body II
1
1
2
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
2
Self-locking nut M5
AP8152306
Not Available
3
Reflector support
AP8134783
£15,47 Unit Price incl. VAT
4
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
5
Rear reflector
AP8112916
£12,35 Unit Price incl. VAT
6
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
7
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
8
Lower Number plate holder
858842
£30,35 Unit Price incl. VAT
9
T bush
894566
£10,54 Unit Price incl. VAT
10
Extension
894900
£15,31 Unit Price incl. VAT
11
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
12
Vibration-damping rubber
AP8117258
£7,86 Unit Price incl. VAT
13
Number-plate light
AP8127098
Not Available
14
Screw 4,2x16
AP8150522
£3,86 Unit Price incl. VAT
15
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
16
Number plate support
AP8149034
£25,42 Unit Price incl. VAT
17
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
18
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
19
Maintenance
894899
£31,78 Unit Price incl. VAT

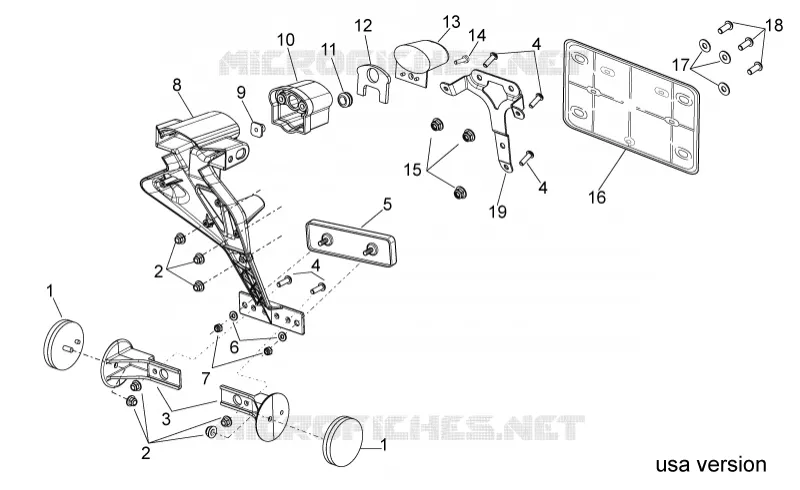

Find the detailed Rear body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
