Engine displacement
1000
2
Model
TUONO
3
Year
2014
4
Trim
Tuono V4 R APRC ABS
5
Parts Catalog
Rear body III
6
Parts Diagram
Parts Catalog
Crank-case I
by
Front fork
Rear body III
1
2
3
4
5
6
7
7
8
9
10
1
Upper Number plate holder
858840
£31,87 Unit Price incl. VAT
2
Number plate holder
897482
£33,92 Unit Price incl. VAT
3
Upper Rear mudguard
895487
£157,14 Unit Price incl. VAT
4
Number plate holder
895914
£33,34 Unit Price incl. VAT
5
Lower Rear mudguard
895488
£165,00 Unit Price incl. VAT
6
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
7
Self-locking nut M5
AP8152306
Not Available
8
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
9
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
10
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT

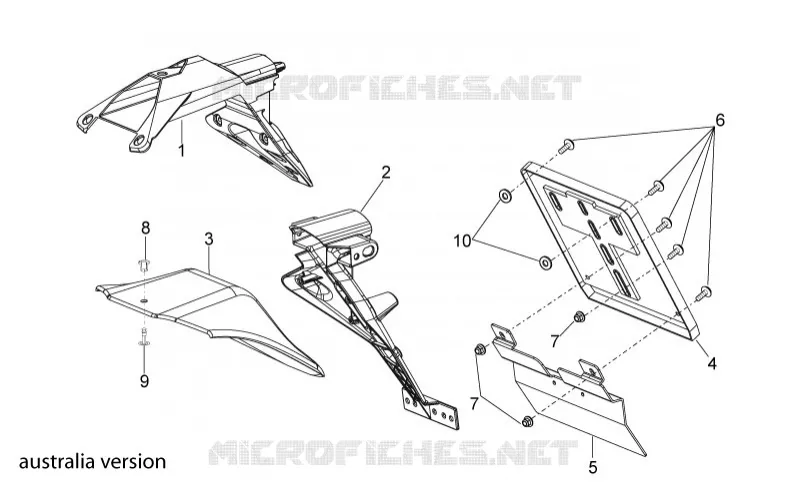

Find the detailed Rear body III APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
