1
Engine displacement
1000
2
Model
TUONO
3
Year
2004
4
Trim
RSV 1000 Tuono
5
Parts Catalog

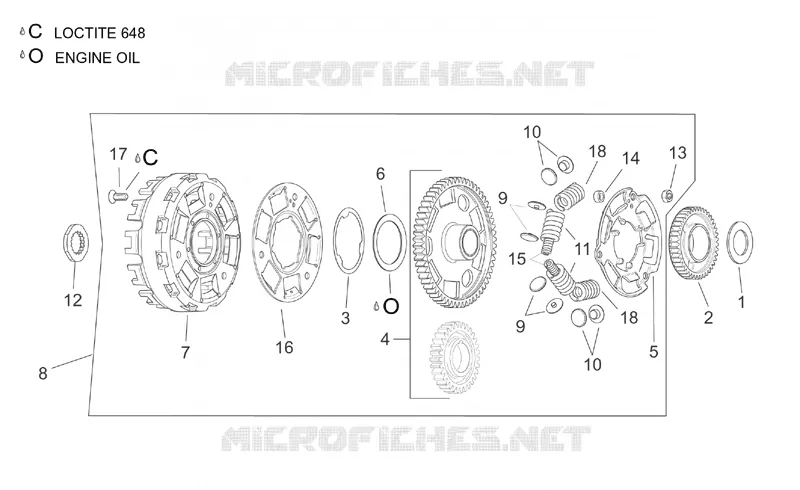

Clutch II
6
Parts Diagram
Parts Catalog
Front fork I
by
Fron fork II
Clutch II
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
18
1
Washer 30,2x50
AP0627260
£16,84 Unit Price incl. VAT
2
Oil pump gear z=42
AP0634475
Not Available
3
Thrust washer
AP0627910
Not Available
4
Primary drive gear
AP0295783
Not Available
5
Springholder plate
AP0259583
Not Available
6
Spring washer 68x52x1,2
AP0239390
Not Available
7
Clutch drum
AP0259535
Not Available
8
Primary transm.
AP0295795
Not Available
9
Bush D5,5
AP0247972
Not Available
10
Bush D11,5
AP0247974
Not Available
11
Spring
AP0238135
Not Available
12
Washer 25x44,4x5
AP0627220
Not Available
13
Nut M8
AP0242206
Not Available
14
Spacer
AP0247614
Not Available
15
Spring
AP0238140
Not Available
16
Springholder plate
AP0259587
Not Available
17
screw M8x25
AP0941835
Not Available
18
Spring
AP0238130
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
