1
Engine displacement
1000
2
Model
TUONO
3
Year
2004
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Clutch pump
6

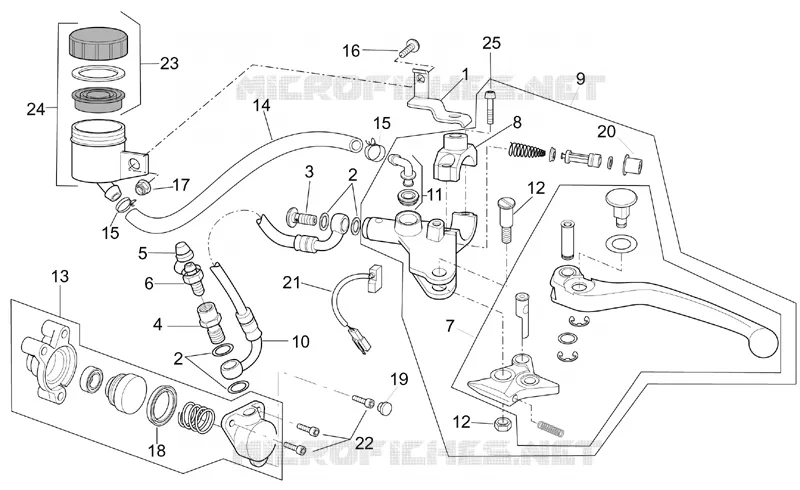

Parts Diagram
Parts Catalog
Oil tank
by
Front body - Front fairing
Clutch pump
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
1
Oil tank plate
AP8134898
Not Available
2
Gasket
AP8121915
Not Available
3
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
4
Bored screw
AP8113762
Not Available
5
Bleed valve cap
AP8113230
£66,14 Unit Price incl. VAT
6
Air bleed valve
AP8113761
Not Available
7
Clutch lever
AP8113758
£109,15 Unit Price incl. VAT
8
Rearview mirror base *
AP8104500
Not Available
8
Rearview mirror base
AP8168217
Not Available
9
Clutch pump
AP8176050
Not Available
9
Clutch pump
AP8106384
Not Available
10
Clutch pipe
AP8133574
Not Available
11
Rear brake pump union
AP8213057
£28,61 Unit Price incl. VAT
12
Lever pin
AP8113719
Not Available
13
Clutch command cylinder
AP8106381
Not Available
14
pipe
AP8113773
Not Available
15
Hose clamp
AP8113764
Not Available
16
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
17
Self-locking nut M5
AP8152306
Not Available
18
Gasket
AP8106935
£33,25 Unit Price incl. VAT
19
Rubber spacer
AP8144158
£8,17 Unit Price incl. VAT
20
Guard
AP8133522
£22,30 Unit Price incl. VAT
21
Clutch switch+harness
AP8124398
Not Available
22
Hex socket screw M6x45
AP0241821
Not Available
23
Tank cap
AP8113553
£23,46 Unit Price incl. VAT
24
Oil tank
AP8106382
£50,06 Unit Price incl. VAT
25
Cap screw
AP8213299
£3,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
