1
Engine displacement
1000
2
Model
TUONO
3
Year
2005
4
Trim
RSV 1000 Tuono
5
Parts Catalog

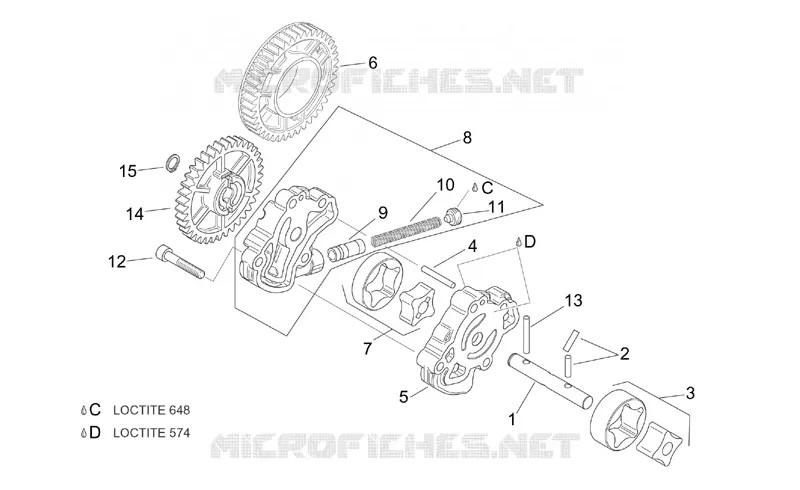

Oil pump
6
Parts Diagram
Parts Catalog
Front cylinder timing system
by
Foot rests
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Oil pump shaft assy.
AP0220423
Not Available
2
Pin 4x15,8
AP0232730
Not Available
3
Internal and external rotor
AP0256680
Not Available
4
Pin 4x25,8
AP0232970
Not Available
5
Oil pressing pump casing
AP0211620
Not Available
6
Oil pump gear z=42
AP0634475
Not Available
7
Internal and external rotor
AP0956275
Not Available
8
Oil pump cover cpl.
AP0211632
Not Available
9
Pressure adj. piston
AP0256510
Not Available
10
Spring
AP0239447
Not Available
11
Valve closer screw m12x1,5
AP0241650
Not Available
12
Hex socket screw M6x45
AP0241821
Not Available
13
Pin
AP0232430
Not Available
14
Oil pump gear
AP0634483
Not Available
15
Circlip 10x1
AP0245330
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
