1
Engine displacement
1000
2
Model
TUONO
3
Year
2005
4
Trim
RSV 1000 Tuono
5
Parts Catalog

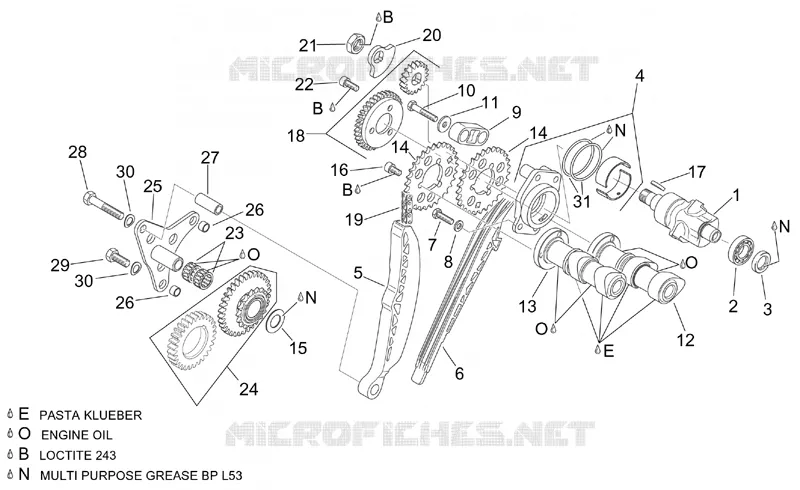

Rear cylinder timing system
6
Parts Diagram
Parts Catalog
Front body - Front mudguard
by
Taillight
Rear cylinder timing system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
30
1
Upper balance shaft
AP0220440
Not Available
2
Ball bearing 16002
AP0832360
Not Available
3
Oil seal 15x24x5
AP0250130
£32,93 Unit Price incl. VAT
4
Bushing plate cpl.
AP0211681
Not Available
5
Chain guide
AP0236300
Not Available
6
Chain guide
AP0236310
Not Available
7
Hex screw
AP0940560
Not Available
8
Washer 6,4
AP0244211
Not Available
9
Chain guide
AP0236380
Not Available
10
Hex screw
AP0941121
£5,57 Unit Price incl. VAT
11
Washer 6,2x18x2
AP0827305
£12,08 Unit Price incl. VAT
12
Exhaust camshaft
AP0220385
Not Available
13
Intake camshaft
AP0220384
Not Available
14
Timing system gear
AP0634732
Not Available
15
Washer 16,7x29x1
AP0627190
£7,02 Unit Price incl. VAT
16
Hex socket screw M6x11,5
AP0840371
Not Available
17
Transmission key 3x3,7
AP0246055
Not Available
18
Upper balance shaft gear cpl.
AP0295775
Not Available
19
Camshaft chain
AP0297957
Not Available
20
Counterweight
AP0219340
Not Available
21
Nut m14
AP0942570
Not Available
22
Hex socket screw
AP0840391
Not Available
23
Roller cage 16x22x10
AP0632161
Not Available
24
Timing system gear cpl.
AP0295760
Not Available
25
Roller cage plate
AP0211756
Not Available
26
Pin 10x8
AP0929500
Not Available
27
Bush 8,2x12x25
AP0247980
Not Available
28
Hex screw
AP0940631
£3,49 Unit Price incl. VAT
29
Hex screw
AP0240275
Not Available
30
Spring washer b8
AP0845030
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
