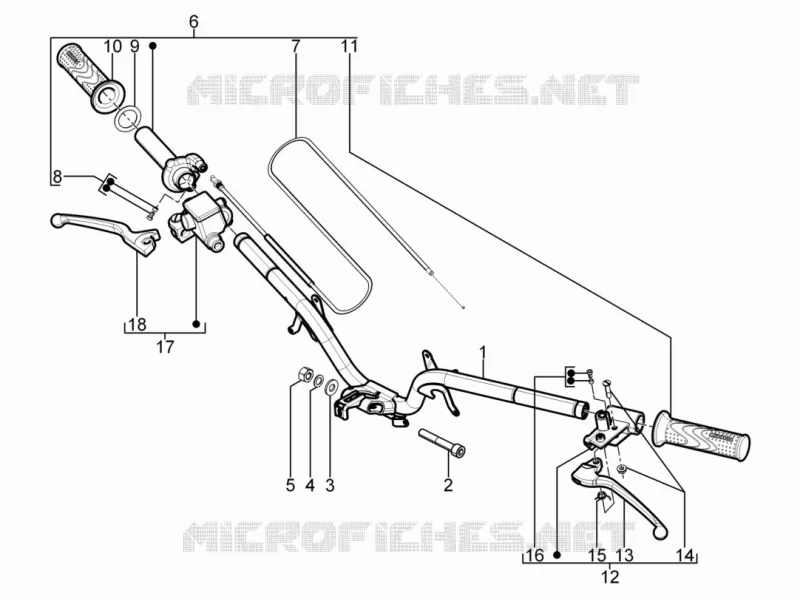

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Handlebar
853047
£103,72 Unit Price incl. VAT
2
Hex socket screw
655554
£1,97 Unit Price incl. VAT
3
Flat washer
178790
£1,64 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
5
Nut M10
015330
Not Available
6
Throttle cpl.
CM060978
£29,15 Unit Price incl. VAT
7
Gas lever transmission
890301
£15,90 Unit Price incl. VAT
8
Screw with bushing
123394
£2,69 Unit Price incl. VAT
9
Ring 38,3x27x1,2
562923
£0,48 Unit Price incl. VAT
10
RH hand grip
274491
£8,42 Unit Price incl. VAT
11
Grip, l.h.
274489
£8,42 Unit Price incl. VAT
12
Sleeve with rear brake lever
CM063805
£77,83 Unit Price incl. VAT
13
Lever
564681
£17,00 Unit Price incl. VAT
14
Screw with nut
265249
£3,55 Unit Price incl. VAT
15
Spring
267948
£0,96 Unit Price incl. VAT
16
Screw with bushing
123394
£2,69 Unit Price incl. VAT
17
(Heng Tong) Brake pump
CM064305
£151,91 Unit Price incl. VAT
18
Brake lever Heng Tong
646832
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
