Parts Catalog

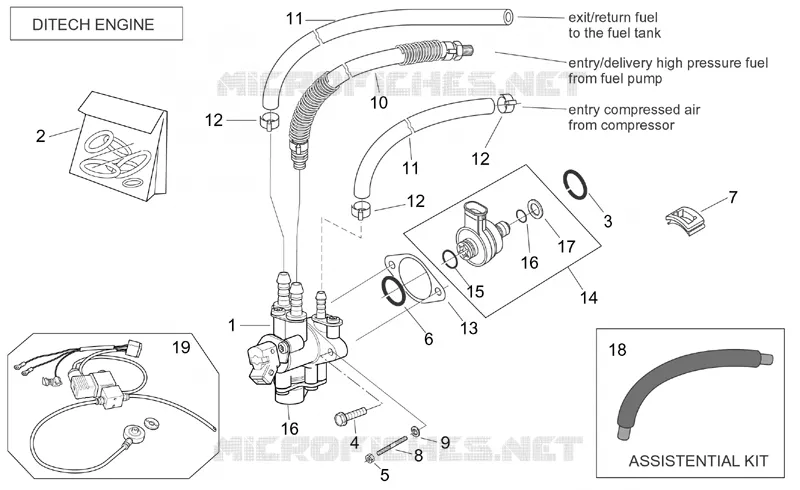

Injection unit (Ditech)
6
Parts Diagram
Parts Catalog
Flywheel
by
Front lights USA
Injection unit (Ditech)
1
2
3
4
5
6
7
8
9
10
11
11
12
12
12
13
14
15
16
16
17
18
19
1
Inlet valve
AP3AEA000133
Not Available
1
Inlet valve
AP3AEA000547
£340,60 Unit Price incl. VAT
1
Inlet valve
AP3AEA000631
Not Available
2
O-ring kit
AP5RZR000232
Not Available
3
O-ring 17x3,5
AP2EAN000186
£4,56 Unit Price incl. VAT
3
O-ring
AP2EAN000258
£12,71 Unit Price incl. VAT
4
screw
AP2AVN000256
Not Available
5
Nut M5
AP4BEN000223
Not Available
6
O-ring
AP2EAN000257
Not Available
6
O-ring 17x3,5
AP2EAN000186
£4,56 Unit Price incl. VAT
7
Lockup rubber
AP3AVN000199
£3,59 Unit Price incl. VAT
7
Lockup rubber
AP3AVN000245
Not Available
8
Stud bolt
AP4BAN000222
Not Available
9
Washer
AP4DFN000032
Not Available
10
High pressure pipe cpl.
AP5RAR000102
Not Available
11
High pressure pipe
AP2AAN000212
Not Available
12
Hose clamp
AP2FDN000200
£3,59 Unit Price incl. VAT
13
Paper gasket
AP3AVA000438
Not Available
14
Air injector
AP3AGA000137
Not Available
14
Air injector
AP3AGA000614
Not Available
15
Upper O-ring
AP5RAR000109
£13,52 Unit Price incl. VAT
16
Lower O-ring
AP5RAR000108
Not Available
17
Teflon ring
AP5RAR000110
Not Available
18
Insulated pipe
AP8220711
Not Available
19
Emulsion bleed valve kit
AP8276090
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
