1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2012
4
Trim
Sport City Street 4T 4V E3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Dashboard
by
Clutch
Cooling system
1
2
3
4
4
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
1
Expansion tank
AP8178066
Not Available
2
Water cooler hose union
AP8144642
£56,94 Unit Price incl. VAT
3
Cooler-pump pipe
AP8144784
£75,49 Unit Price incl. VAT
4
Hose clamp
CM001907
£1,67 Unit Price incl. VAT
5
Breather pipe 7,5X3,5
AP8144506
£28,10 Unit Price incl. VAT
6
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
7
White hose clip D17,5x8
AP8102349
£10,54 Unit Price incl. VAT
8
Expansion tank plug
AP8570122
£40,31 Unit Price incl. VAT
9
Spring plate M6
254485
£1,64 Unit Price incl. VAT
10
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
11
Breather plug
AP8144298
£39,31 Unit Price incl. VAT
12
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
13
Head tube union
AP8144759
£79,84 Unit Price incl. VAT
14
Joint
AP8144704
Not Available
15
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
16
Joint
AP8144785
Not Available
17
Pump connection hose
AP8144786
£23,88 Unit Price incl. VAT
18
Hose clamp
CM001922
£1,99 Unit Price incl. VAT
19
Hose clamp
CM001909
£1,88 Unit Price incl. VAT
20
Water tubes holder
AP8134460
Not Available

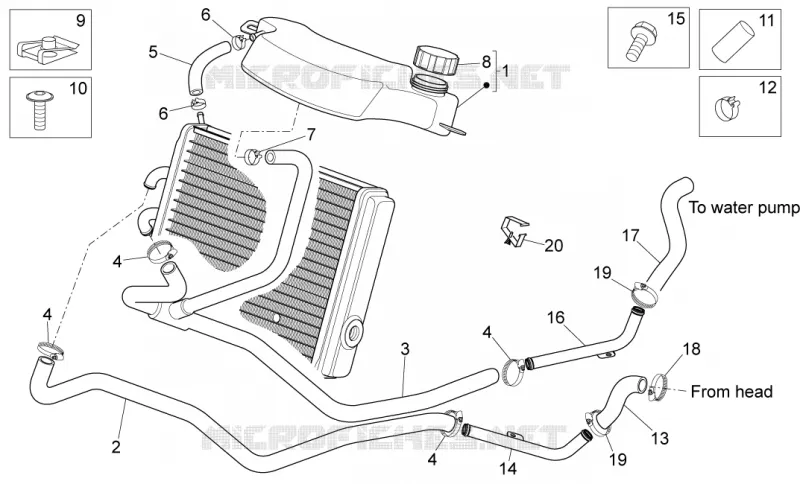

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
