Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Front fork R
by
Exhaust unit
Swing arm
1
2
3
3
4
4
5
6
7
7
8
8
8
8
8
8
9
10
10
10
10
11
11
11
11
11
11
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Swing arm, anod.
AP8135333
Not Available
1
Swing arm, anod.
AP8105135
Not Available
1
Swing arm, anod.
AP8135206
Not Available
2
Rear swing arm pin
AP8105156
Not Available
3
Needle bearing
AP8110033
Not Available
4
Gasket ring
AP8120340
Not Available
5
Bush
AP8121692
Not Available
6
Bush
AP8121693
Not Available
7
Bush
AP8121703
Not Available
8
Cup
AP8101677
Not Available
9
Shock absorber
AP8123072
Not Available
9
Shock absorber
AP8123263
Not Available
9
Shock absorber
AP8123373
Not Available
10
Needle bearing
AP8110039
Not Available
11
Gasket ring
AP8120240
Not Available
12
Ball joint
AP8121815
Not Available
13
Gasket ring
AP8120485
£3,11 Unit Price incl. VAT
14
Bush
AP8121098
£14,32 Unit Price incl. VAT
15
Bushing 16x18
AP8121700
Not Available
16
Double connecting rod pin
AP8132779
Not Available
17
Single connecting rod pin
AP8132780
Not Available
18
Double conrod
AP8135372
Not Available
18
Double conrod
AP8132782
Not Available
19
Single conrod
AP8135373
Not Available
19
Single conrod
AP8132783
Not Available
20
Chain tensioner sliding block
AP8201045
Not Available
21
Chain guide plate, black
AP8101957
Not Available
22
Spacer
AP8121072
Not Available
23
Spring
AP8121694
Not Available
24
Chain guard, black
AP8130803
Not Available
25
Chain tensioner rod
AP8135437
Not Available
26
Lateral stand
AP8135425
Not Available
27
Bracket
AP8134179
Not Available
28
Lateral stand spring
AP8221197
£5,62 Unit Price incl. VAT
29
Rubber spacer
AP8120455
£10,54 Unit Price incl. VAT

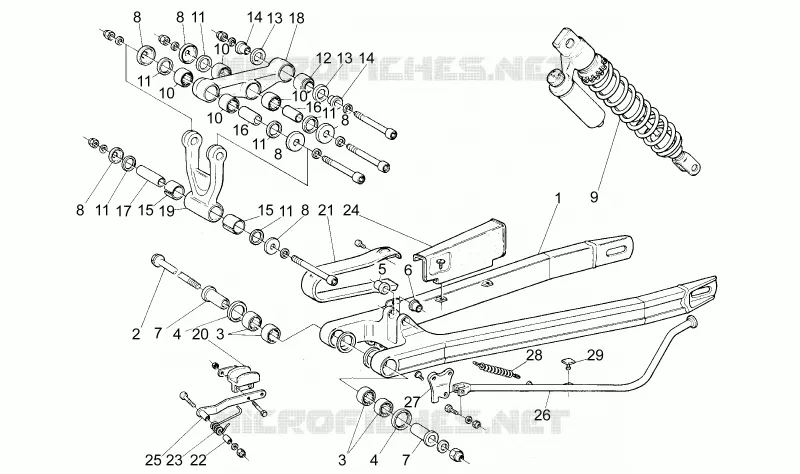

Find the detailed Swing arm APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
