Parts Catalog
Variator
6
Parts Diagram
Parts Catalog
Carburettor - oil pump assy.
by
Transmission final drive
Variator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Spacer D18x23x6
AP8206529
Not Available
1
Spacer D18x23x6
AP8221327
£9,83 Unit Price incl. VAT
1
Spacer D18x23x6,5
AP8206420
Not Available
1
Spacer D18x23x5
AP8206478
Not Available
2
Blue steel washer D13,2x20
AP8222337
Not Available
2
Blue steel washer D13x18,5x1
AP8206702
Not Available
3
Fixed pulley
AP8206116
Not Available
4
Front pulley drive plate
AP8206140
Not Available
5
Toothed start clutch cup
AP8206141
Not Available
6
Conical spring washer
AP8206204
Not Available
7
Nut M10x1,25
AP8206183
Not Available
8
T bush
AP8206479
Not Available
9
Starter motor gear Z=71
AP8206144
Not Available
10
Cage D57x61x10
AP8206210
Not Available
11
Starter clutch assy.
AP8206147
£60,92 Unit Price incl. VAT
12
Slider
AP8206698
Not Available
13
Ramp plate
AP8206136
£21,25 Unit Price incl. VAT
14
Pin roller d9,8
AP8206419
Not Available
14
Pin roller D8,8
AP8206701
Not Available
14
Pin roller d9,5
AP8206430
£4,70 Unit Price incl. VAT
15
Pulley assy., driving
AP8222335
Not Available
16
Vee-Belt
AP8206818
Not Available
17
Bush 13x18x38,2
AP8222336
Not Available

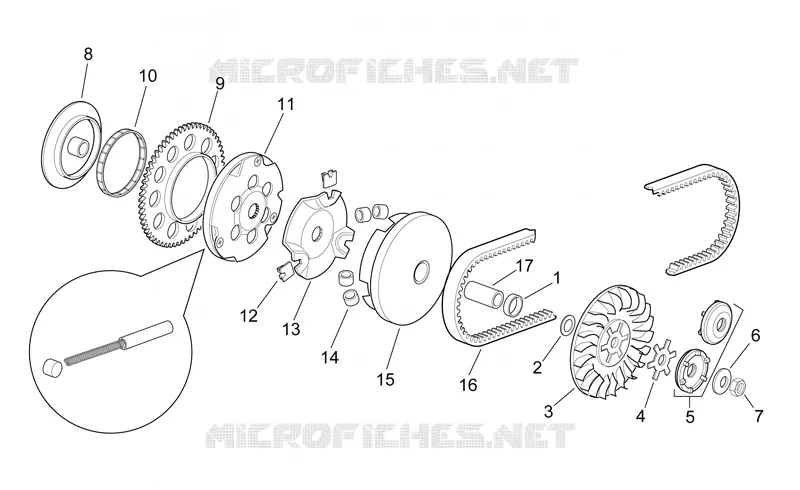

Find the detailed Variator APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
