1
Engine displacement
280
2
Model
CLIMBER
3
Year
1990
4
Trim
CLIMBER
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Rear wheel
Front wheel
1
2
3
4
5
6
6
7
9
10
11
12
13
15
16
17
18
19
20
21
22
23
23
24
25
25
26
27
28
29
31
32
1
Front wheel
AP8108507
Not Available
1
Front wheel
AP8108407
Not Available
2
Front hub
AP8125535
Not Available
3
Front wheel spindle
AP8125640
Not Available
3
Front wheel spindle
AP8125498
Not Available
4
Front wheel
AP8125536
Not Available
4
Front wheel
AP8108479
Not Available
5
Missing description
AP
Not Available
6
Front spoke
AP8108408
Not Available
7
Missing description
AP
Not Available
8
Front brake disc, stainl.
AP8113655
Not Available
9
Odometer gear
AP8101946
Not Available
10
T bush 8,2x12x4
AP8121096
£1,96 Unit Price incl. VAT
11
Front brake caliper
AP8113346
Not Available
11
Front brake caliper
AP8113527
Not Available
12
Brake caliper rev. kit
AP8113182
Not Available
13
Split pin
AP8113183
Not Available
15
Bleed valve cap
AP8113070
£13,98 Unit Price incl. VAT
16
Air bleed valve
AP8113353
Not Available
17
Pads pair
AP8113417
Not Available
18
Speedometer
AP8131027
Not Available
19
Tachometer supp.
AP8134185
Not Available
19
Tachometer supp.
AP8134304
Not Available
20
Front brake hose, blue
AP8113526
Not Available
20
Front brake hose
AP8113295
Not Available
20
Front brake hose
AP8113472
Not Available
21
Odometer cable
AP8114159
Not Available
22
Disk cover, grey
AP8138052
Not Available
22
Disk cover, violet
AP8131080
Not Available
22
Disk cover, white
AP8131570
Not Available
22
Disk cover, yellow
AP8131779
Not Available
23
Bearing
AP8125321
Not Available
24
Internal spacer
AP8125504
Not Available
25
Oil seal
AP8120621
Not Available
26
Spacer bush
AP8121733
Not Available
27
Nipples D3
AP8208410
£2,04 Unit Price incl. VAT
28
Front wheel flap 21"
AP8109001
£16,79 Unit Price incl. VAT
29
Tyre fixing support
AP8101031
Not Available
31
Hose clamp
AP8132907
£2,68 Unit Price incl. VAT
32
Hex screw M6x16
AP8150070
£1,45 Unit Price incl. VAT

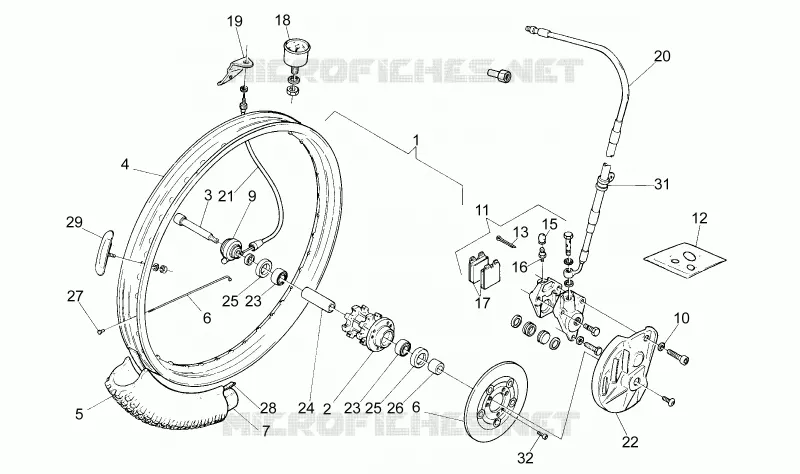

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
