1
Engine displacement
50
2
Model
RS
3
Year
2006
4
Trim
RS 50
5
Parts Catalog

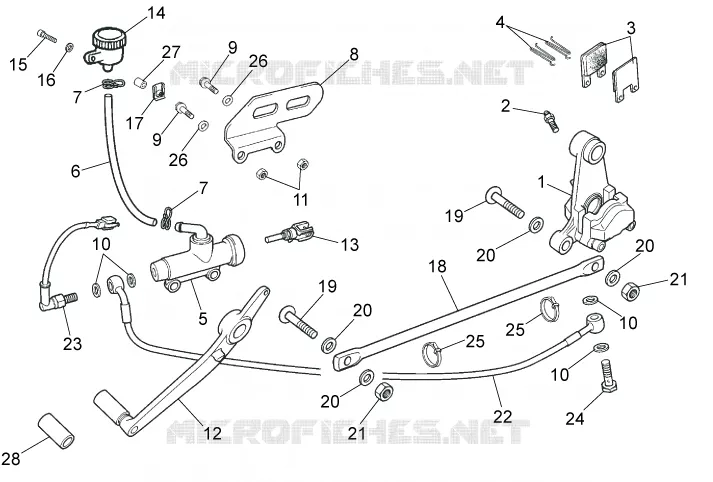

Rear brake system
6
Parts Diagram
Parts Catalog
Rear body
by
Frame - Cradle
Rear brake system
1
2
3
4
5
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
17
18
19
19
20
20
20
20
21
21
22
23
24
25
25
26
26
27
28
1
Rear caliper
00H01105581
Not Available
2
Bleed valve
00H04700121
£35,23 Unit Price incl. VAT
3
Pads pair
00G04700141
£37,07 Unit Price incl. VAT
4
Spring
00H01301831
£7,48 Unit Price incl. VAT
5
Rear master cylinder
00H01105181
Not Available
6
pipe
00H01101211
Not Available
7
Hose clamp
00H03700131
£1,21 Unit Price incl. VAT
8
Guard
00H01104701
Not Available
9
screw
00G01504701
Not Available
10
Washer
00006321040
Not Available
11
Nut M6100
00000023060
Not Available
12
Rear brake lever
00H01100541
Not Available
13
Master cylinder rod
00H01104611
Not Available
14
Oil tank
00D01100201
£43,01 Unit Price incl. VAT
15
screw
00002053051
Not Available
16
Washer
00H03800722
£1,57 Unit Price incl. VAT
17
Nut D5
00G04401462
£1,27 Unit Price incl. VAT
18
Tie rod
00H01301311
£10,18 Unit Price incl. VAT
19
screw
00G06800211
Not Available
20
Washer
00402100001
Not Available
21
Nut 10M150
00262100032
Not Available
22
Brake hose
00H01113081
Not Available
23
Stop switch
00H01100221
£78,80 Unit Price incl. VAT
24
Joint
00H00902261
Not Available
25
Hose clamp
00D00900531
£1,44 Unit Price incl. VAT
26
Washer D6 DIN125 AZNB
00402060001
Not Available
27
Ring nut
00H01002821
£4,00 Unit Price incl. VAT
28
Guard
00H02701271
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
