by

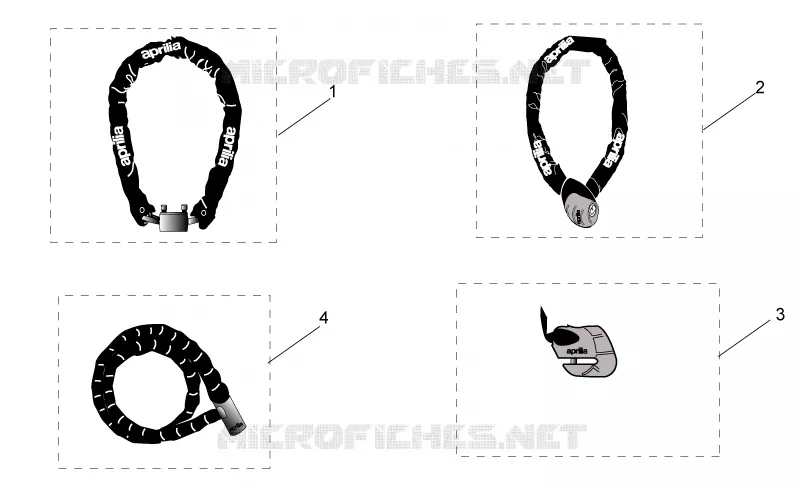

Acc. - Mechanics anti-theft
4
3
2
1
1
Iron Guard 10x150 mm
AP8720115
Not Available
2
Iron Guard 8x120 mm
AP8720116
Not Available
3
Iron Guard Disk 5 mm
AP8720117
Not Available
4
Easy Guard 150 mm
AP8720118
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
