1
Engine displacement
50
2
Model
RALLY
3
Year
1997
4
Trim
Rally H2O
5
Parts Catalog
Exhaust unit BAR
6

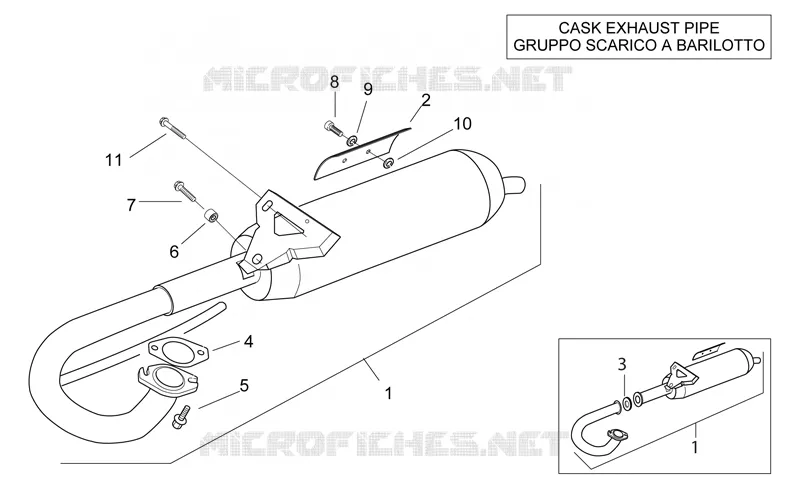

Parts Diagram
Parts Catalog
Exhaust unit RAC
by
Front wheel
Exhaust unit BAR
11
10
9
8
7
6
5
4
3
2
1
1
1
Cat.exhaust pipe - A
AP8219404
Not Available
1
Cat.exhaust pipe -D-
AP8219388
Not Available
1
Cat.exhaust pipe -CH-
AP8219356
Not Available
1
Cat.exhaust pipe -NL-
AP8219387
Not Available
2
Exhaust pipe prot., chr.black
AP8232524
Not Available
3
Exhaust pipe flange gasket
AP8219321
Not Available
4
Exhaust pipe gasket
AP8219212
£9,56 Unit Price incl. VAT
5
Screw w/ flange
AP8152260
Not Available
6
Silent block, exhaust pipe
AP8220357
£10,27 Unit Price incl. VAT
7
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
8
Hex socket screw
AP8150340
£1,32 Unit Price incl. VAT
9
Washer 6,4x12,5*
AP8150178
£1,27 Unit Price incl. VAT
10
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
11
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
