Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Central body - Underpanel
by
Cylinder - Piston
Electrical system
1
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
Main wiring harness
860262
Not Available
2
Horn
AP8124530
Not Available
3
Support clamp
AP8134627
Not Available
4
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
5
Brake light switch w/ rubber
AP8224192
£22,27 Unit Price incl. VAT
6
Main switch - steering lock
AP8124886
Not Available
7
Aprilia milled key
AP8102880
Not Available
8
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
9
Shear rivet M6x17
AP8152140
£2,39 Unit Price incl. VAT
10
Rubber fuse box
AP8112811
£11,53 Unit Price incl. VAT
11
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
12
Fuse 15A
AP8112176
Not Available
13
Fuse 7,5A
AP8112244
Not Available
14
Fuse 20A
AP8112506
Not Available
15
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
18
Voltage regulator
AP8127418
Not Available
19
Battery 12V-6Ah
AP8124604
Not Available
20
Main fuses wiring
AP8127233
Not Available
21
Lateral stand switch
AP8124943
£47,51 Unit Price incl. VAT
22
Black hose 98x2*
AP8120422
£1,49 Unit Price incl. VAT
23
CDI unit assy
CM078307
£360,97 Unit Price incl. VAT
24
Relay rubber
AP8220546
£3,74 Unit Price incl. VAT
25
Screw w/ flange M5x20
AP8152274
£1,80 Unit Price incl. VAT
26
HT coil
82597R
£27,64 Unit Price incl. VAT
27
Starter relay
AP8224026
Not Available
28
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
29
B.l. switch wiring
AP8224205
Not Available
30
Stop switch
AP8124818
Not Available
31
Rubber spacer *
AP8220135
£6,46 Unit Price incl. VAT
32
Screened cap
293845
£25,22 Unit Price incl. VAT
33
Spark plug prot.collar
828210
Not Available
34
Ambient temperature sensor
581142
Not Available

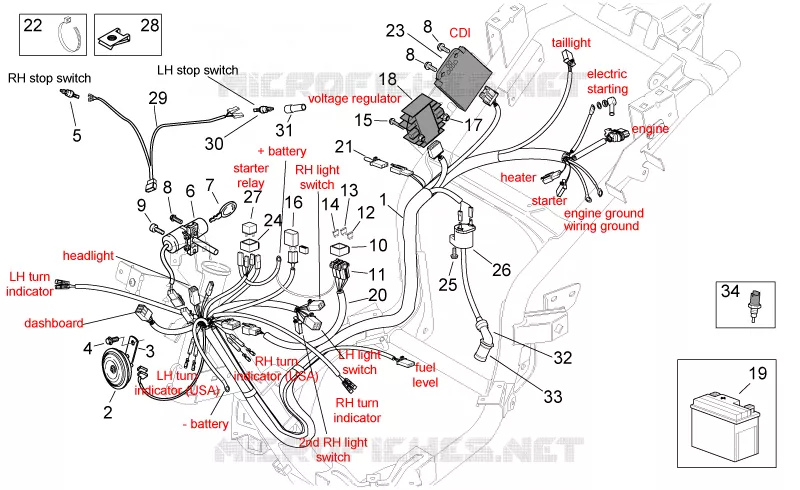

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
