1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog
Variator assembly
6
Parts Diagram
Parts Catalog
Oil pump
by
Clutch

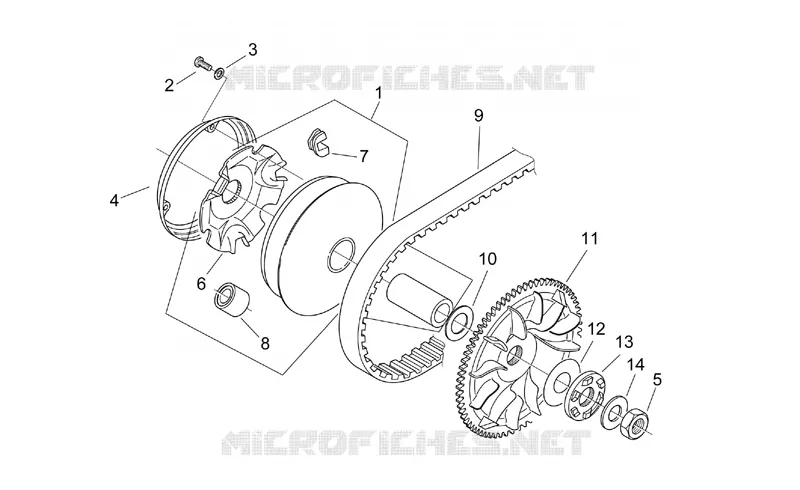

Variator assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Half-pulley assy., driving
AP8550509
Not Available
2
Hex socket screw M4x10
AP8550140
Not Available
3
Washer 4,3x8x0,5
AP8550141
Not Available
4
Cover
AP8550370
Not Available
5
Nut
AP8550391
Not Available
6
Roller contrast
AP8550368
Not Available
7
Sliding block
AP8550448
Not Available
8
Pin roller-set
AP8550431
Not Available
9
Vee-Belt
AP8550363
Not Available
10
Washer
AP8550474
Not Available
11
Drive half-pulley cpl.
AP8550510
Not Available
12
Washer
AP8550475
Not Available
13
Teethed bush
AP8550345
Not Available
14
Belleville spring
AP8550440
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
