1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog

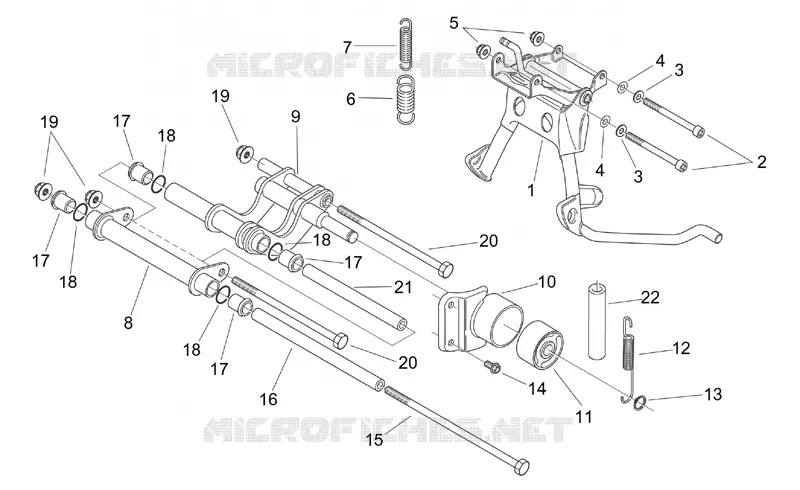

Central stand - Connecting rod
6
Parts Diagram
Parts Catalog
Frame
by
Front shock absorber
Central stand - Connecting rod
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
18
18
18
19
19
20
20
21
22
1
Central stand
AP8146266
Not Available
2
Hex socket screw
AP8150388
£1,94 Unit Price incl. VAT
3
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
4
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
5
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
6
Lateral stand spring
AP8125833
Not Available
7
Internal lateral stand spring
AP8125834
Not Available
8
Engine connecting element
AP8146237
Not Available
9
Frame coupling rod
AP8146238
Not Available
10
Silent-block supp.plate
AP8134562
Not Available
11
Silent-block
AP8144207
Not Available
12
Connecting rod support spring
AP8125816
£30,94 Unit Price incl. VAT
13
Circlip
AP8550032
Not Available
14
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
15
Pin M10x260
AP8121367
£15,05 Unit Price incl. VAT
16
Connecting rod spacer
AP8121397
£34,19 Unit Price incl. VAT
17
Rod bush
AP8121398
Not Available
18
O-ring 4087
AP8120280
£1,01 Unit Price incl. VAT
19
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
20
Screw
AP8150412
£13,28 Unit Price incl. VAT
21
Connecting rod spacer
AP8121396
£13,67 Unit Price incl. VAT
22
Spring protection
AP8104147
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
