1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog
Saddle - Handle
6
Parts Diagram
Parts Catalog
Central body - Underpanel
by
Helmet compartment
Saddle - Handle
1
2
3
4
4
4
4
5
5
5
6
7
8
9
10
11
1
Saddle complete, blue
AP8229324
Not Available
1
Saddle complete, red
AP8229306
Not Available
1
Saddle, black (two p)
AP8229307
Not Available
1
Saddle complete, blue
AP8129270
Not Available
1
Saddle complete, green
AP8229305
Not Available
2
Rubber spacer
AP8220349
£3,10 Unit Price incl. VAT
3
Pillion grab bar, blue
AP8249070
Not Available
3
Pillion grab bar, cyan
AP8258126
Not Available
3
Pillion grab bar, chr.
AP8248983
Not Available
3
Pillion grab bar, black
AP8249091
Not Available
3
Pillion grab bar, a.green
AP8139895
Not Available
3
Pillion grab bar, orange
AP8249049
Not Available
3
Pillion grab bar, a.black
AP8249829
Not Available
3
Pillion grab bar, c.red
AP8249404
Not Available
4
T bush *
AP8121725
£1,88 Unit Price incl. VAT
5
Hex socket screw M6x35
AP8152136
£1,27 Unit Price incl. VAT
6
Saddle hinge
AP8248158
£23,60 Unit Price incl. VAT
7
Saddle spin
AP8221282
Not Available
8
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
9
Split pin
AP8201643
£3,43 Unit Price incl. VAT
10
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
11
T bush
AP8121795
£2,63 Unit Price incl. VAT

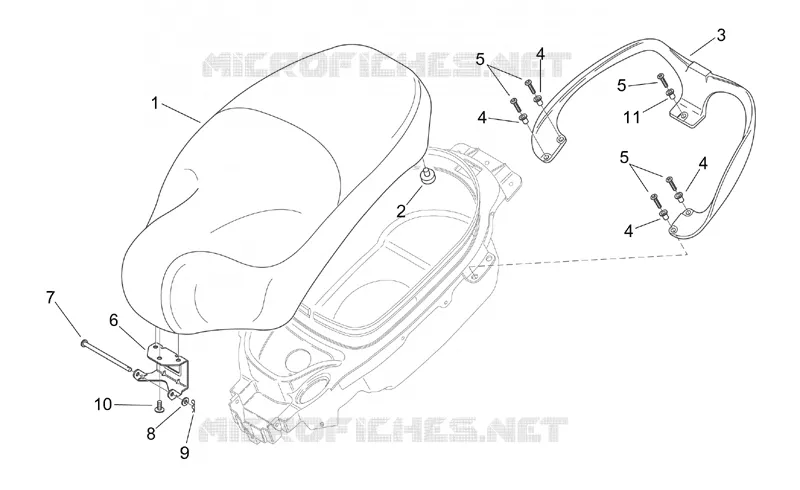

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
