1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog
Rear body - Rear fairing
6
Parts Diagram
Parts Catalog
Rear body - Undersaddle
by
Rear body - Mudguard
Rear body - Rear fairing
1
2
2
2
2
3
3
3
4
4
5
5
6
6
7
7
8
8
1
Rear fairing, a.green
AP8249387
Not Available
1
Rear fairing, Ap.Black
AP8139999
Not Available
1
Rear fairing, cyan
AP8258130
Not Available
1
Rear fairing, volcano black
AP8249419
Not Available
1
Rear fairing, varadero cyan
AP8139950
Not Available
1
Rear fairing, c.red
AP8249410
Not Available
1
Rear fairing, orange
AP8249513
Not Available
1
Rear fairing, reef blue
AP8148642
Not Available
2
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
3
Screw 5,5x20
AP8152345
£1,46 Unit Price incl. VAT
4
Oval finish, chr.
AP8248194
Not Available
5
Oval reflector, amber
AP8224114
£13,69 Unit Price incl. VAT
6
Washer 4,3x16*
AP8150159
£1,88 Unit Price incl. VAT
7
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
8
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT

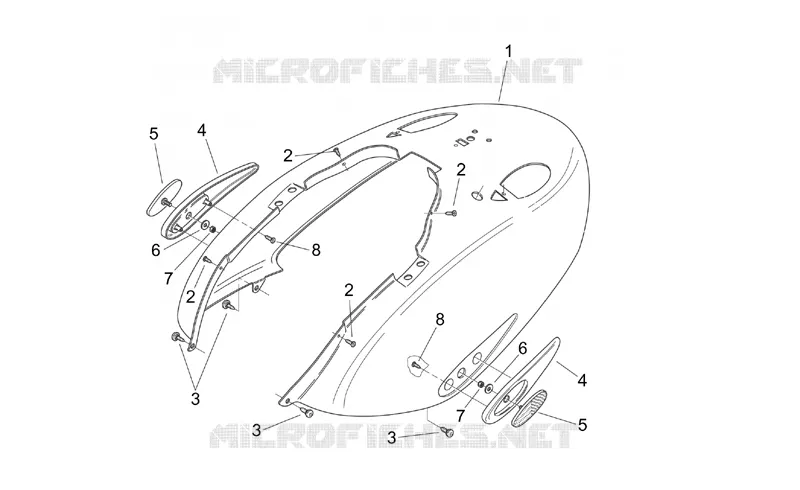

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
