1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog
Cooling unit carter - Oil cooler
6
Parts Diagram
Parts Catalog
Drive carter - Kick starter
by
Cdi magneto assy

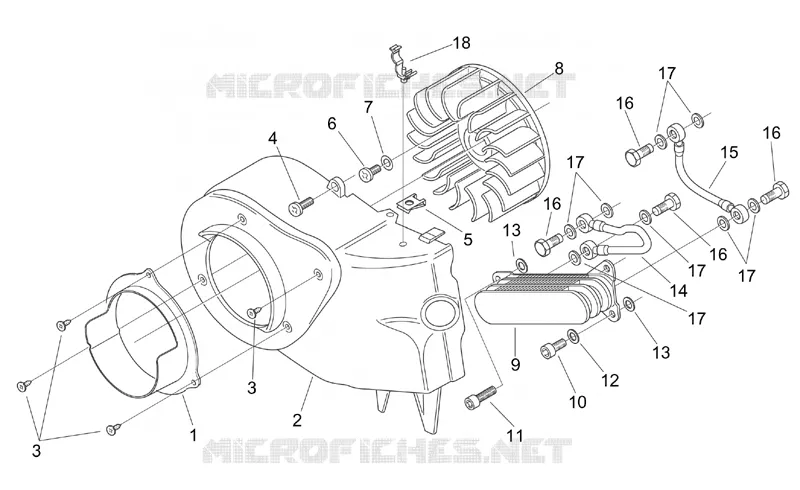

Cooling unit carter - Oil cooler
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
16
16
17
17
17
17
17
18
1
Air duct
AP8148492
Not Available
2
Fan shroud
AP8550369
Not Available
3
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
4
Spec. self-tap screw
AP8550542
Not Available
5
Clip
AP8550365
Not Available
6
Hex socket screw
AP8550155
Not Available
7
Washer 5,3x10x0,5
AP8550154
Not Available
8
Cooling fan
AP8550538
Not Available
9
Oil cooler cpl.
AP8550469
Not Available
10
Hex socket screw M6x16
AP8550552
Not Available
11
Screw M6x20
AP8550551
Not Available
12
Spring washer 6,4x11x0,5
AP8550481
Not Available
13
Insulating washer
AP8550485
Not Available
14
Preformed pipe
AP8550530
Not Available
15
Preformed pipe
AP8550531
Not Available
16
Special bored screw
AP8550544
Not Available
17
Seal washer
AP8550480
Not Available
18
Cable-guide
AP8550258
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
