1
Engine displacement
125
2
Model
MOJITO
3
Year
1999
4
Trim
Mojito
5
Parts Catalog
Front shock absorber
6
Parts Diagram
Parts Catalog
Central stand - Connecting rod
by
Headlight support - RETRO'

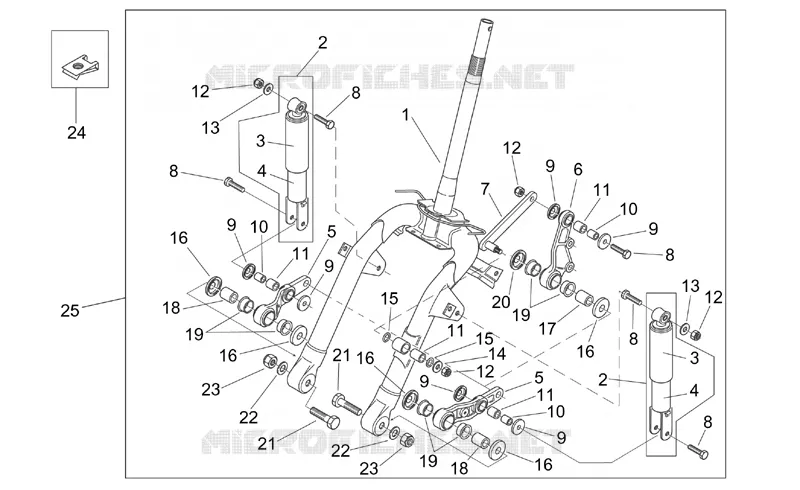

Front shock absorber
1
2
2
3
3
4
4
5
5
6
7
8
8
8
8
8
9
9
9
9
9
9
10
10
10
11
11
11
11
12
12
12
12
13
13
14
15
15
16
16
16
16
16
17
18
18
19
19
19
20
21
21
22
22
23
23
24
25
1
Front fork
AP8203973
Not Available
2
Fork shock absorber
AP8123881
Not Available
3
Upper shock absorber cover
AP8248182
Not Available
4
Lower shock absorber cover
AP8248183
Not Available
5
Connecting rod
AP8203970
Not Available
6
Brake caliper plate
AP8234176
Not Available
7
plate
AP8203971
£39,47 Unit Price incl. VAT
8
Hex screw M8x35
AP8201602
Not Available
9
Cup D20
AP8203521
£10,07 Unit Price incl. VAT
10
Bush
AP8203536
Not Available
11
Nylon bush
AP8203523
Not Available
12
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
13
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
14
Special washer
AP8203542
Not Available
15
O-ring 115
AP8220177
£0,08 Unit Price incl. VAT
16
Cup
AP8203520
Not Available
17
Bush
AP8203524
Not Available
18
Bush
AP8203538
Not Available
19
Nylon bush
AP8203522
Not Available
20
Cup D28
AP8203519
£40,49 Unit Price incl. VAT
21
Screw m12x50
AP8203972
Not Available
22
Washer 13x24x2,5*
AP8150101
£1,21 Unit Price incl. VAT
23
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
24
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
25
Front fork
AP8123926
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
