1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog

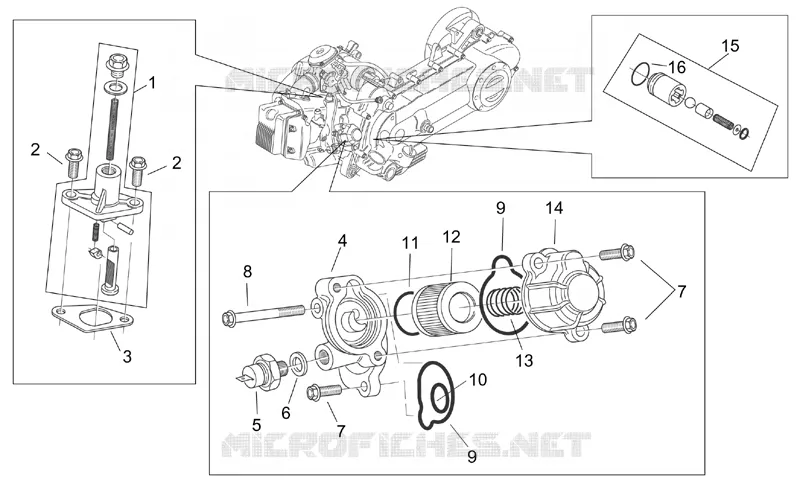

Oil filter - Chain tensioner
6
Parts Diagram
Parts Catalog
Oil breather valve
by
Oil pump
Oil filter - Chain tensioner
1
2
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
1
Chain tensioner assy.
AP8550528
Not Available
2
Screw w/ flange M6x16
AP8550557
Not Available
3
Chain tensioner gasket
AP8550429
Not Available
4
Oil filter union
AP8550467
Not Available
5
Pressure sensor
AP8550512
Not Available
6
Washer 16x10.5x2.5
AP8550331
Not Available
7
Hex socket screw M6x20
AP8550553
Not Available
8
Float chamber fixing screw
AP8550238
Not Available
9
Gasket ring
AP8550324
Not Available
10
Gasket ring
AP8550325
Not Available
11
O-ring
AP8550330
Not Available
12
Oil filter
AP8550404
Not Available
13
Oil filter spring
AP8550441
Not Available
14
Oil filter cover
AP8550373
Not Available
15
Oil valve cpl.
AP8550534
Not Available
16
O-ring
AP8550329
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
