1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 1100 RR Euro 4 ABS
5
Parts Catalog

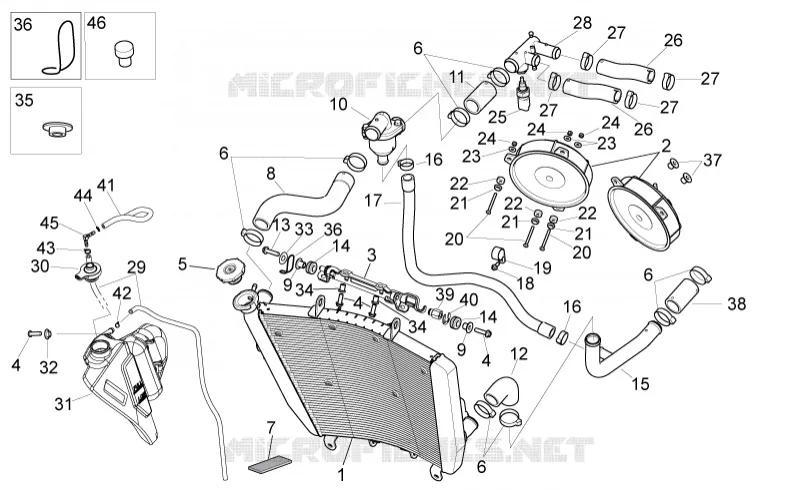

COOLING SYSTEM
6
Parts Diagram
Parts Catalog
WATERPUMP
by
Cover
COOLING SYSTEM
1
2
3
4
4
4
5
6
6
6
6
7
8
9
9
10
11
12
13
14
14
15
16
16
17
18
19
20
20
21
21
21
22
22
22
23
23
24
24
24
25
26
26
27
27
27
27
28
29
30
31
32
33
34
34
35
36
36
37
38
39
40
41
42
43
44
45
46
1
Water cooler
2B003834
Not Available
2
Fan, cpl.
2D000310
Not Available
3
Water cooler upper support
897775
£24,43 Unit Price incl. VAT
4
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
5
Cover
893954
£70,10 Unit Price incl. VAT
6
Hose clamp
CM269609
£3,60 Unit Price incl. VAT
7
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
8
Thermostat-cooler pipe
2B002204
£35,21 Unit Price incl. VAT
9
T bush
AP8221023
£1,64 Unit Price incl. VAT
10
Thermostat valve set 75°C
856279
£84,72 Unit Price incl. VAT
11
Hose H2O
2B002207
£16,66 Unit Price incl. VAT
12
Thermostat-pump pipe
AP8144033
£23,12 Unit Price incl. VAT
13
Self-tapping screw
AP8150444
£1,27 Unit Price incl. VAT
14
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
15
Cooler-pump pipe
858488
£135,50 Unit Price incl. VAT
16
Hose clamp
CM269603
£3,60 Unit Price incl. VAT
17
Thermostat-engine pipe
2B002208
£28,10 Unit Price incl. VAT
18
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
19
Hose clamp
893224
£10,54 Unit Price incl. VAT
20
Screw
893514
£2,48 Unit Price incl. VAT
21
Washer d4,5
893823
£7,85 Unit Price incl. VAT
22
Spacer
893513
£5,14 Unit Price incl. VAT
23
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
24
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
25
Temperature gauge
640485
Not Available
26
Engine-manifold pipe
2B002203
£37,43 Unit Price incl. VAT
27
Hose clip 26x8
AP9100456
£3,49 Unit Price incl. VAT
28
Manifold
856543
£26,28 Unit Price incl. VAT
29
Fuel pipe 5,5x10
AP8120952
Not Available
30
Expansion tank plug
899642
£10,20 Unit Price incl. VAT
31
Expansion tank
2B003557
£37,20 Unit Price incl. VAT
32
T bush *
AP8221145
£9,78 Unit Price incl. VAT
33
Washer 4,3X9X0,8
AP8150158
£1,27 Unit Price incl. VAT
34
T bush
AP8121728
£1,88 Unit Price incl. VAT
35
Bush
AP8121991
£3,60 Unit Price incl. VAT
36
Cable-guide
AP8221150
£2,48 Unit Price incl. VAT
37
Bush
895450
£7,85 Unit Price incl. VAT
38
Hose
AP8144720
£13,62 Unit Price incl. VAT
39
Threaded insert M6x16
898047
£7,33 Unit Price incl. VAT
40
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
41
Cooler-expansion tank pipe
899881
£13,00 Unit Price incl. VAT
42
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
43
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
44
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
45
2-way union
856082
£14,46 Unit Price incl. VAT
46
Mushroom rubber
AP8220488
£0,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
