Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 1100 RR Euro 4 ABS
5
Parts Catalog
Undersaddle
6
Parts Diagram
Parts Catalog
Clutch I
by
SEAT
Undersaddle
1
2
3
3
4
4
4
4
4
5
6
6
7
7
1
Saddle supp.lower lockup
858836
£38,24 Unit Price incl. VAT
2
Battery bracket
898252
£10,85 Unit Price incl. VAT
3
Hex socket screw
895915
£2,48 Unit Price incl. VAT
4
Screw w/ flange M5x12
AP8152302
Not Available
5
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
6
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
7
Clip M5
AP8102375
£2,20 Unit Price incl. VAT

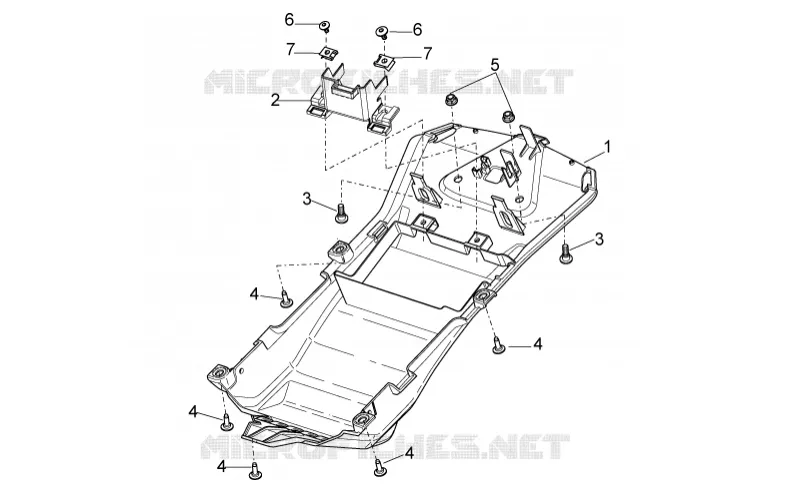

Find the detailed Undersaddle APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
