1
Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog

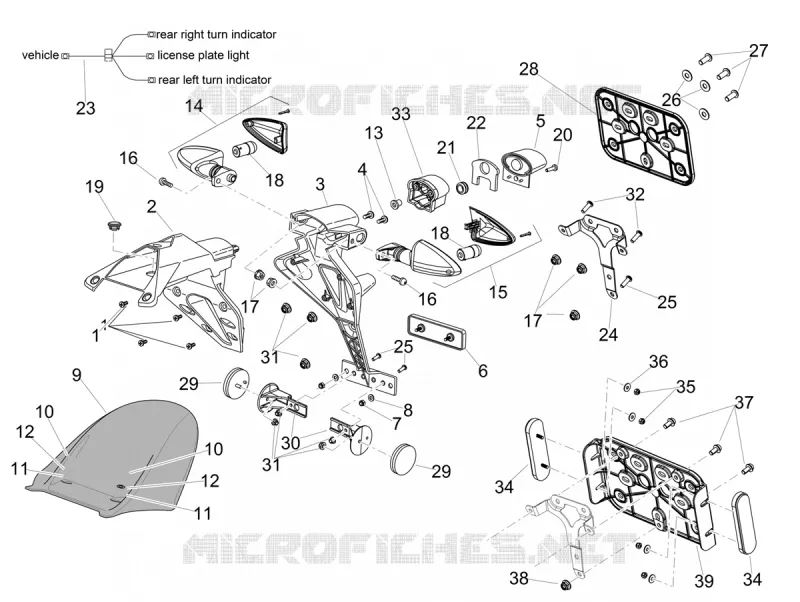

Rear body II
6
Parts Diagram
Parts Catalog
Frame II
by
Front body III
Rear body II
39
38
37
36
35
34
34
33
32
31
31
30
29
29
28
27
26
25
25
24
23
22
21
20
19
18
18
17
17
16
16
15
14
13
12
12
11
11
10
10
9
8
7
6
5
5
4
3
2
1
1
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
2
Number plate holder
2B001552
£23,98 Unit Price incl. VAT
3
Number plate holder
897482
£33,92 Unit Price incl. VAT
4
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
5
Number-plate light
85256R
£3,25 Unit Price incl. VAT
6
Rear reflector
AP8112916
£12,35 Unit Price incl. VAT
7
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
8
Washer 4,3X9X0,8
AP8150158
£1,27 Unit Price incl. VAT
9
Rear mudguard
858782
£19,94 Unit Price incl. VAT
10
Hex socket screw M6x20
AP8152137
£2,34 Unit Price incl. VAT
11
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
12
Curved spring washer *
AP8150182
£2,48 Unit Price incl. VAT
13
T bush
894566
£10,54 Unit Price incl. VAT
14
LH front/RH rear turn indic.
AP8127803
£32,52 Unit Price incl. VAT
15
RH front/LH rear turn indic.
AP8127804
£32,52 Unit Price incl. VAT
16
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
18
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
19
Cover
894657
£2,23 Unit Price incl. VAT
20
Screw 4,2x16
AP8150522
£3,86 Unit Price incl. VAT
21
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
22
Vibration-damping rubber
AP8117258
£7,86 Unit Price incl. VAT
23
Taillight wiring harn.
858868
£37,25 Unit Price incl. VAT
24
Maintenance
894899
£31,78 Unit Price incl. VAT
25
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
26
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
27
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
28
Number plate support
AP8149034
£25,42 Unit Price incl. VAT
29
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
30
Reflector support
AP8134783
£15,47 Unit Price incl. VAT
31
Self-locking nut M5
AP8152306
Not Available
32
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
33
Extension
894900
£15,31 Unit Price incl. VAT
34
Rear reflector, red
AP8124718
£16,44 Unit Price incl. VAT
35
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
36
Washer
AP8150501
£2,48 Unit Price incl. VAT
37
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
38
Self-locking nut M5
AP8152306
Not Available
39
Number plate support
2B004072
£20,52 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
