1
Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Exhaust pipe I
6
Parts Diagram
Parts Catalog
Front body II
by
Plate set and decal

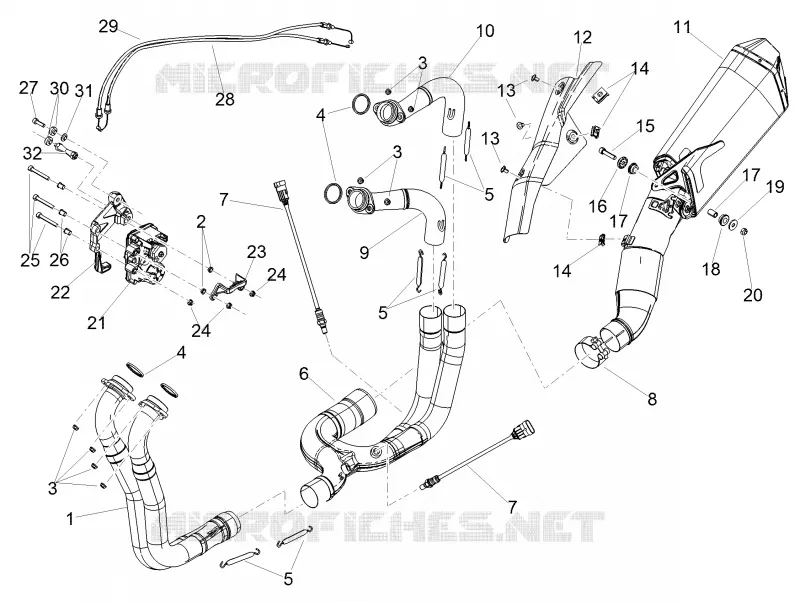

Exhaust pipe I
32
31
30
29
28
27
26
25
24
24
23
22
21
20
19
18
17
17
16
15
14
14
13
13
12
11
10
9
9
8
7
7
6
5
5
5
4
3
3
3
2
1
1
Front. Exhaust pipe
858738
Not Available
2
T bush
AP8121811
£1,27 Unit Price incl. VAT
3
Nut
436947
£1,14 Unit Price incl. VAT
4
Exhaust pipe gasket
852090
Not Available
5
Spring
AP8121170
£18,19 Unit Price incl. VAT
6
Central exhaust manifold
2B003347
£1 149,98 Unit Price incl. VAT
7
Lamda sensor
2D000152
£106,68 Unit Price incl. VAT
8
Hose clamp
976521
£50,06 Unit Price incl. VAT
9
RH rear exhaust pipe
858739
Not Available
10
LH rear exhaust pipe
858740
Not Available
11
Silencer
2B0028345
Not Available
12
Protection
2B004120
Not Available
13
Torx Screw M6x10
898385
£7,85 Unit Price incl. VAT
14
Spring plate M6
254485
£1,64 Unit Price incl. VAT
15
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
16
Bush
AP8121199
£10,54 Unit Price incl. VAT
17
Rubber spacer
AP8144558
£4,92 Unit Price incl. VAT
18
Spacer bush
AP8121455
£4,31 Unit Price incl. VAT
19
Washer
AP8150018
£1,88 Unit Price incl. VAT
20
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
21
Exhaust valve actuator
2D000263
£561,14 Unit Price incl. VAT
22
Valve support clamp
2B003443
£3,43 Unit Price incl. VAT
23
Cover support
2B003577
£1,87 Unit Price incl. VAT
24
Low self-locking nut M6
AP8150115
Not Available
25
Hex socket screw M6x45
AP8150403
£1,94 Unit Price incl. VAT
26
Bushing 6,4x8,4x10,5
GU91120607
£5,29 Unit Price incl. VAT
27
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
28
Exhaust valve opening cable
2B003425
£31,82 Unit Price incl. VAT
29
Exhaust valve closing cable
2B003556
£24,89 Unit Price incl. VAT
30
Bush
2B003714
£2,66 Unit Price incl. VAT
31
Bush
AP8121032
£3,88 Unit Price incl. VAT
32
Spacer
894933
£24,37 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
