1
Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog

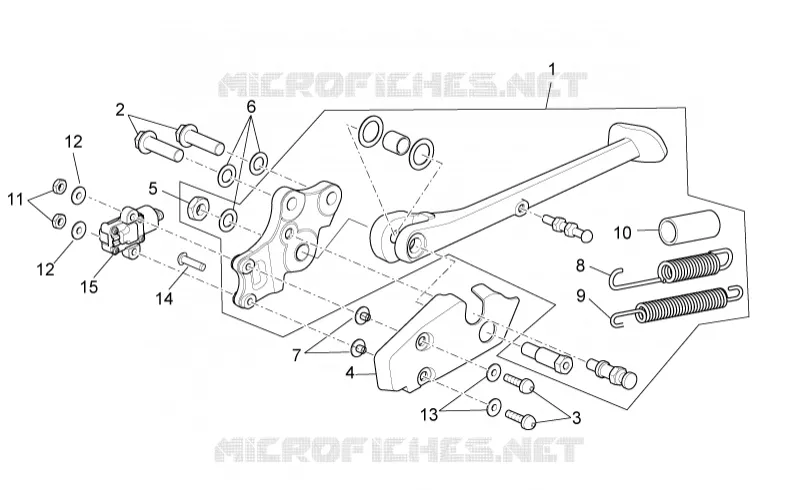

Central stand
6
Parts Diagram
Parts Catalog
Engine
by
Rear cylinder timing system
Central stand
15
14
13
12
12
11
10
9
8
7
6
5
4
3
2
1
1
Sidestand assy
2B003283
£376,15 Unit Price incl. VAT
2
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
3
Hex socket screw
AP8225369
£1,27 Unit Price incl. VAT
4
Guard
858941
£10,38 Unit Price incl. VAT
5
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
6
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
7
T bush
843213
£1,27 Unit Price incl. VAT
8
Lateral stand spring
AP8221204
£10,78 Unit Price incl. VAT
9
Internal lateral stand spring
AP8221211
£2,69 Unit Price incl. VAT
10
Stand spring protection
AP8102524
£25,45 Unit Price incl. VAT
11
Low self-locking nut
AP8150311
£0,07 Unit Price incl. VAT
12
Washer 5,3x10x1*
AP8150012
£3,02 Unit Price incl. VAT
13
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
14
Plug
AP8120876
£8,23 Unit Price incl. VAT
15
Lateral stand switch
AP8127856
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
