1
Engine displacement
125
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo ST
5
Parts Catalog
Lights
6

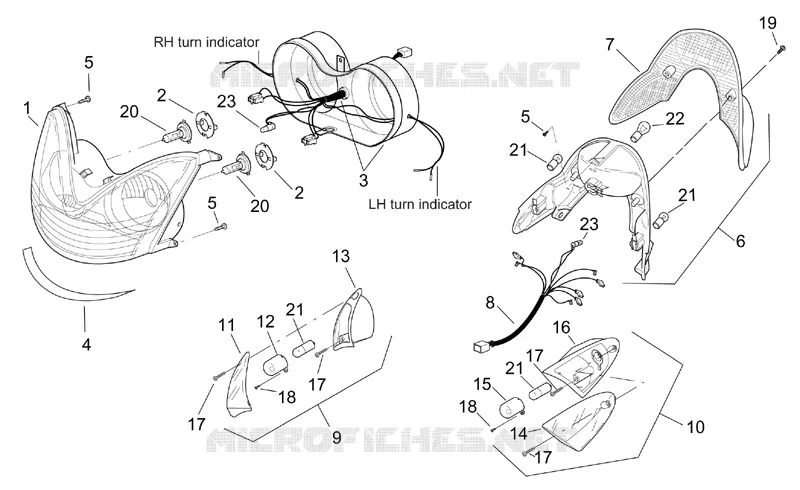

Parts Diagram
Parts Catalog
Rear wheel
by
Electrical system I
Lights
1
2
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
18
19
20
20
21
21
21
22
22
23
23
1
Headlight
AP8127288
Not Available
1
Headlight
AP8127287
Not Available
2
Lampholder
AP8224209
Not Available
3
Headlight wiring w/harness
AP8124409
Not Available
4
Lower light guard decal
AP8147076
£8,05 Unit Price incl. VAT
5
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
6
Taillight
AP8224318
Not Available
7
Taillight lens
AP8124949
Not Available
8
Taillight wiring harn.
AP8124594
Not Available
9
RH front turn indicator
AP8124516
Not Available
10
LH front turn indicator
AP8124517
Not Available
11
RH Turn indicator f.lens
AP8224213
Not Available
12
RH shield
AP8224214
Not Available
13
RH turn light parabola
AP8224215
Not Available
14
LH front turn indicator lens
AP8224210
Not Available
15
LH shield
AP8224211
£9,52 Unit Price incl. VAT
16
LH turn light parabola
AP8224212
Not Available
17
Screw 4,2x20*
AP8150270
£0,98 Unit Price incl. VAT
18
screw
AP8225359
Not Available
19
Self-tap pl.screw G.B.
AP8150484
Not Available
20
Lamp HS1 35+35W 12V
AP8127113
Not Available
21
Lamp R10W 12v
AP8224390
Not Available
22
Lamp P21/5W 12V
AP8224389
Not Available
23
Lamp WY5W 12V
AP8224393
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
