1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog
Water pump
6

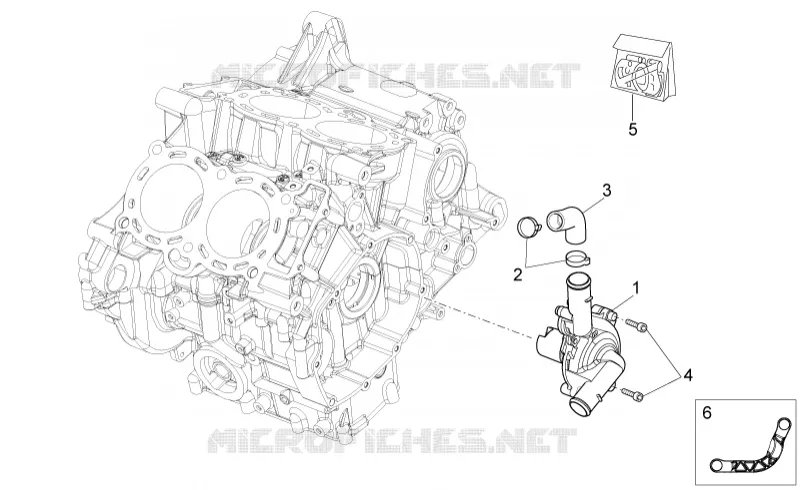

Parts Diagram
Parts Catalog
Throttle body
by
Cover
Water pump
6
5
4
3
2
1
1
Water pump assy
2A000802
£192,53 Unit Price incl. VAT
2
Hose clamp
CM269609
£3,60 Unit Price incl. VAT
3
Water delivery tube
2B002201
£14,10 Unit Price incl. VAT
4
Hex socket screw M6x25
840893
£0,76 Unit Price incl. VAT
5
Water pump kit
893968
£36,13 Unit Price incl. VAT
6
Water pump cap
B043231
£13,33 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
