1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog

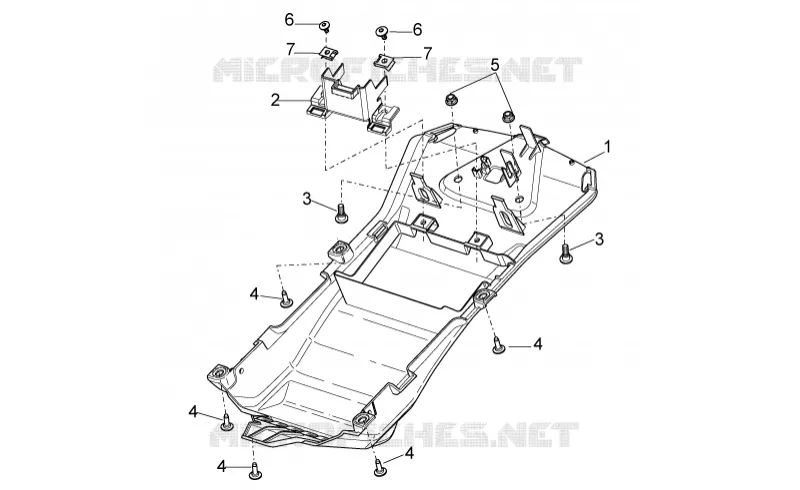

Undersaddle
6
Parts Diagram
Parts Catalog
Clutch I
by
Dashboard
Undersaddle
7
7
6
6
5
4
4
4
4
4
3
3
2
1
1
Saddle supp.lower lockup
858836
£38,24 Unit Price incl. VAT
2
Battery bracket
898252
£10,85 Unit Price incl. VAT
3
Hex socket screw
895915
£2,48 Unit Price incl. VAT
4
Screw w/ flange M5x12
AP8152302
Not Available
5
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
6
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
7
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
