1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog

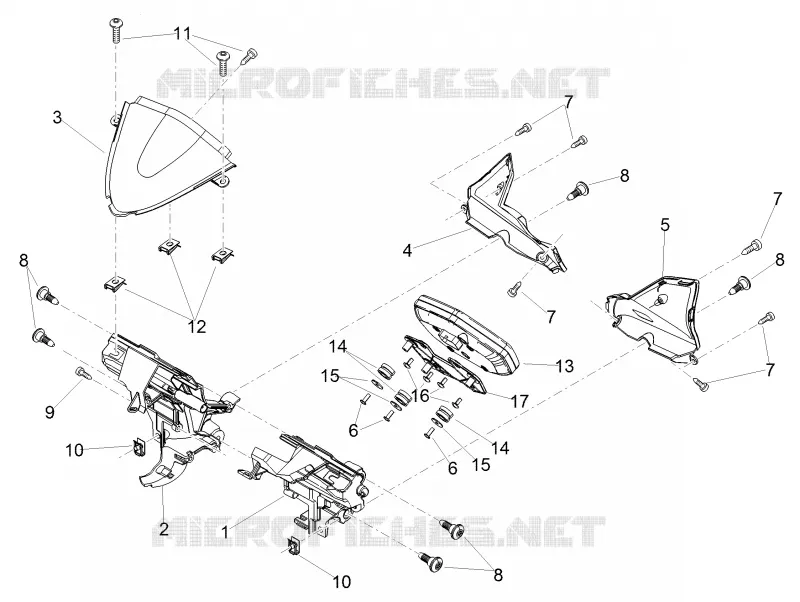

Dashboard
6
Parts Diagram
Parts Catalog
Front wheel
by
Undersaddle
Dashboard
17
16
15
15
14
14
13
12
11
10
10
9
8
8
8
8
7
7
7
7
6
6
5
4
3
2
1
1
Left instrument panel support
2B003492
£37,43 Unit Price incl. VAT
2
Right instrument panel support
2B003491
£37,43 Unit Price incl. VAT
3
Up. Dashboard cover
2B003548
£20,64 Unit Price incl. VAT
4
RH instrument panel board
2B003489
£26,00 Unit Price incl. VAT
5
Instrument panel LH panel
2B003490
£26,00 Unit Price incl. VAT
6
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
7
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
8
Screw M6x20
270361
Not Available
9
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
10
Spring plate M6
254485
£1,64 Unit Price incl. VAT
11
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
12
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
13
Digital dashboard
2D000278
Not Available
14
Rubber spacer
AP8220150
£3,13 Unit Price incl. VAT
15
Washer 5x20x1,5
AP8150255
£0,98 Unit Price incl. VAT
16
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
17
Socket support
2B003549
£18,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
