1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Front cylinder timing system
by
Headlight

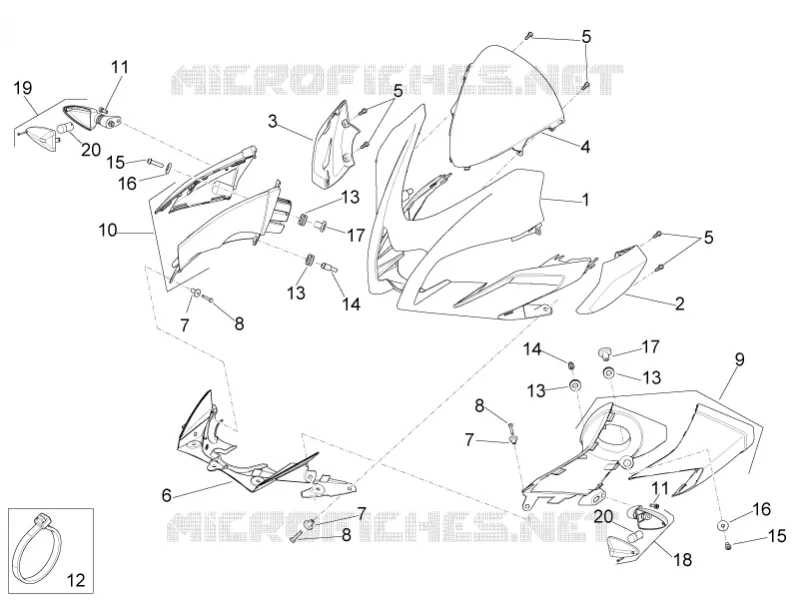

Front body I
20
20
19
18
17
17
16
16
15
15
14
14
13
13
13
13
12
11
11
10
9
8
8
8
7
7
7
6
5
5
5
4
3
2
1
1
Fairing front piece, Competition black paint finish
2H002237000XN2
£346,50 Unit Price incl. VAT
2
LH light side panel
2B001755
£24,52 Unit Price incl. VAT
3
RH light side panel
2B001754
£24,52 Unit Price incl. VAT
4
Windshield
2H001755
Not Available
5
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
6
Headlight Low lockup
2B003718
£10,32 Unit Price incl. VAT
7
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
8
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
9
Complete LH duct
2B002421
£62,16 Unit Price incl. VAT
10
Complete RH duct
2B002422
£62,16 Unit Price incl. VAT
11
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
12
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
13
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
14
Threaded pin
899919
£9,66 Unit Price incl. VAT
15
Vite TBEI M6x25
AP8152117
£2,63 Unit Price incl. VAT
16
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
17
T bush
AP8221023
£1,64 Unit Price incl. VAT
18
LH front/RH rear turn indic.
AP8127803
£32,52 Unit Price incl. VAT
19
RH front/LH rear turn indic.
AP8127804
£32,52 Unit Price incl. VAT
20
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
