1
Engine displacement
125
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo ST
5
Parts Catalog
Cylinder
6

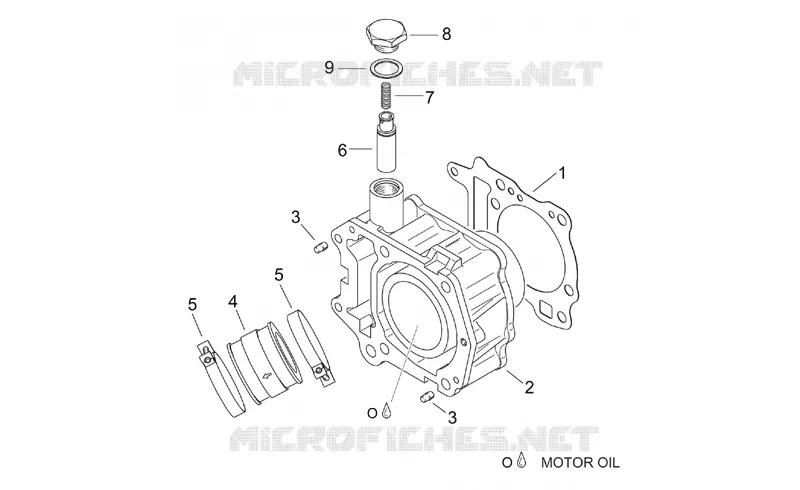

Parts Diagram
Parts Catalog
Valve control
by
Cylinder head
Cylinder
1
2
3
3
4
5
5
6
7
8
9
1
Gasket
AP0650165
£10,79 Unit Price incl. VAT
2
Cylinder with sleeve
AP0613395
Not Available
2
Cylinder with sleeve
AP0613345
Not Available
2
Cylinder with piston Nikasil
AP0223970
Not Available
2
Cylinder with piston Nikasil
AP0223977
Not Available
3
Pin 5x10
AP0929650
Not Available
4
Carburettor flange
AP0267137
Not Available
5
Hose clamp with spacer 45
AP0251052
Not Available
6
Chain tensioner assy.
AP0236490
£29,08 Unit Price incl. VAT
6
Chain tensioner assy.
AP0236250
Not Available
7
Spring 47,5
AP0238100
Not Available
7
Spring 16,9
AP0239015
£12,35 Unit Price incl. VAT
8
screw M18x1,5x10
AP0552276
Not Available
9
Gasket
AP0552280
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
