1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Front body III
by
Cylinder - Piston

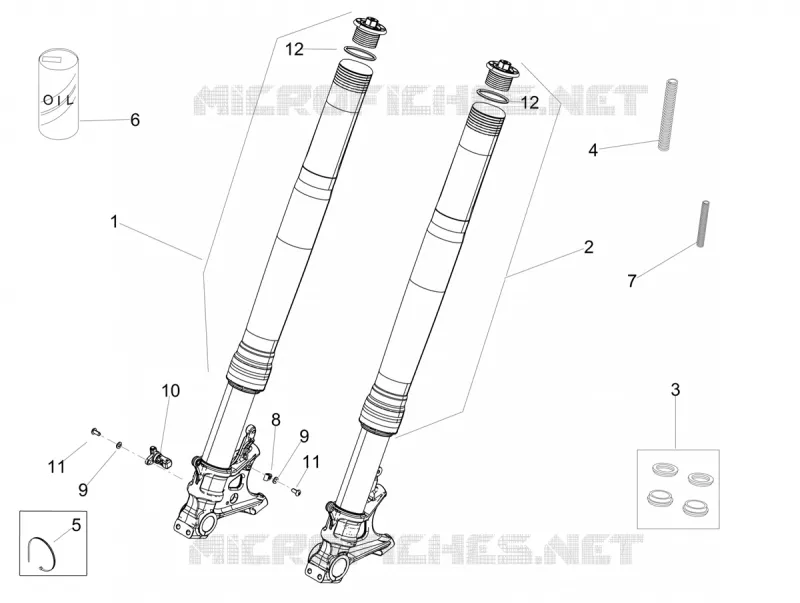

Front fork
12
12
11
11
10
9
9
8
7
6
5
4
3
2
1
1
RH hub cpl.
2B003406
Not Available
2
LH hub cpl.
2B003405
£3 911,68 Unit Price incl. VAT
3
Front fork revision kit
AP8123975
Not Available
4
Spring
893945
£100,03 Unit Price incl. VAT
5
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
6
Front fork oil 1 lt.
AP8116071
£80,99 Unit Price incl. VAT
7
Return spring
893966
£30,60 Unit Price incl. VAT
8
Fairlead
B046190
£4,45 Unit Price incl. VAT
9
Washer 5,3X10X1
AP8150177
£0,06 Unit Price incl. VAT
10
Sensor ABS
859792
Not Available
11
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
12
Ring
2B005852
£27,36 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
