1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
Electrical system I
by
Ignition unit

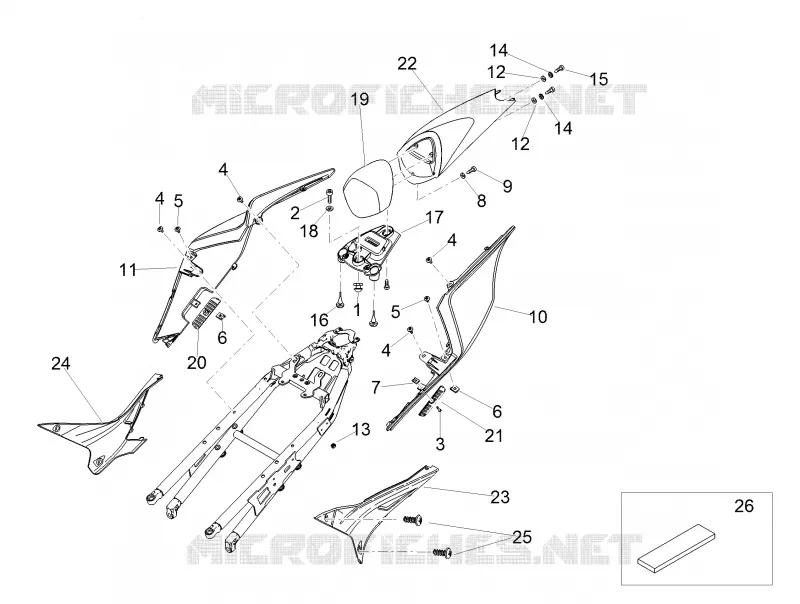

Rear body I
26
25
24
23
22
21
20
19
18
17
16
15
14
14
13
12
12
11
10
9
8
7
6
6
5
5
4
4
4
4
3
2
1
1
Pin
893259
£9,66 Unit Price incl. VAT
2
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
3
Screw M4x14
AP8121184
£1,06 Unit Price incl. VAT
4
Screw w/ flange M5x12
AP8152302
Not Available
5
Hex socket screw M5x10
AP8150538
£1,94 Unit Price incl. VAT
6
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
7
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
8
Nylon washer
AP8144565
£1,27 Unit Price incl. VAT
9
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
10
LH rear fairing, black
2H002241000XN2
£284,45 Unit Price incl. VAT
11
RH rear fairing, black
2H002240000XN2
£284,45 Unit Price incl. VAT
12
Washer
AP8120592
£3,07 Unit Price incl. VAT
13
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
14
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
15
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
16
Rubber spacer
AP8220238
£2,48 Unit Price incl. VAT
17
Saddle cover base
858838
£8,00 Unit Price incl. VAT
18
Washer 4,3X9X0,8
AP8150158
£1,27 Unit Price incl. VAT
19
Cushion
893112
£83,36 Unit Price incl. VAT
20
Net panel (r)
893108
£5,27 Unit Price incl. VAT
21
Net panel (l)
893109
£10,92 Unit Price incl. VAT
22
Saddle cover, black
2H001595000XN2
£84,73 Unit Price incl. VAT
23
LH side panel
2B003815
£64,46 Unit Price incl. VAT
24
RH side panel
2B003816
£64,46 Unit Price incl. VAT
25
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
26
Hose clamp
AP8120657
£1,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
